• Kinugawa Turbo Rebuild Kit - TD04L w/14T Wheels 311-02013-001
1 1

Kinugawa

Turbo Rebuild Kit for TD04L w/14T Wheels

Turbo Rebuild Kit for TD04L w/14T Wheels

$337.00 AUD
$337.00 AUD $337.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

Description

Production Information
Item Name
  • Kinugawa Turbo Rebuild Kit - TD04L w/14T Wheels
Application
  • Kinugawa / Mitsubishi / Greddy TD04L-14T Series Turbocharger
Wheel Spec
  • Compressor wheel: TD04-14T (39.45 / 51.0 mm)
  • Turbine wheel : TD04L (41.3 / 47 mm)

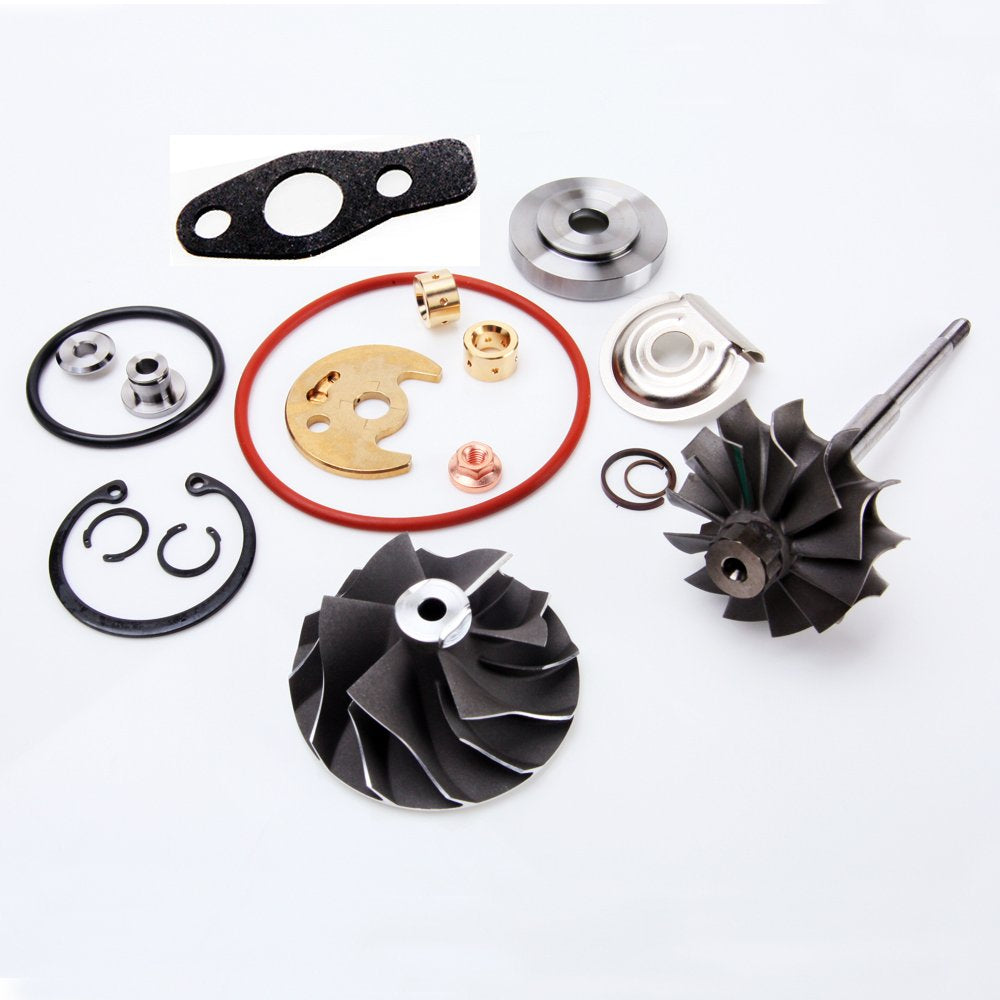

Kit Includes
  • 1 x Shaft Nut
  • 1 x Snap Ring (Insert Retainer)
  • 1 x Insert (Seal Plate)
  • 1 x Piston Ring (Compressor End)
  • 1 x Oil Deflector
  • 1 x Thrust Flinger /Sleeve
  • 1 x Small "O" Ring (Seal Plate)
  • 1 x Thrust Bearing
  • 1 x Thrust Ring /Collar
  • 2 x Journal Bearing
  • 2 x Retaining Ring (Journal Bearing)
  • 1 x Big "O" Ring (Bearing Hsg to Comp. Hsg)
  • 1 x Gasket (Oil Return)
  • 1 x Piston Ring (Turbine End)
  • TD04L turbine wheel (12 Blades)
  • TD04-14T compressor wheel
Made By
  • Kinugawa turbo
Warranty
  • One Year
Please note, due to the number of turbo configurations, and a large variety of fitting kits, Kinugawa orders are custom made to order (please allow 7-10 working days)
