| Production Information |
| Item Name |
- Kinugawa Turbo Rebuild Kit - TD04L
|
| Application |

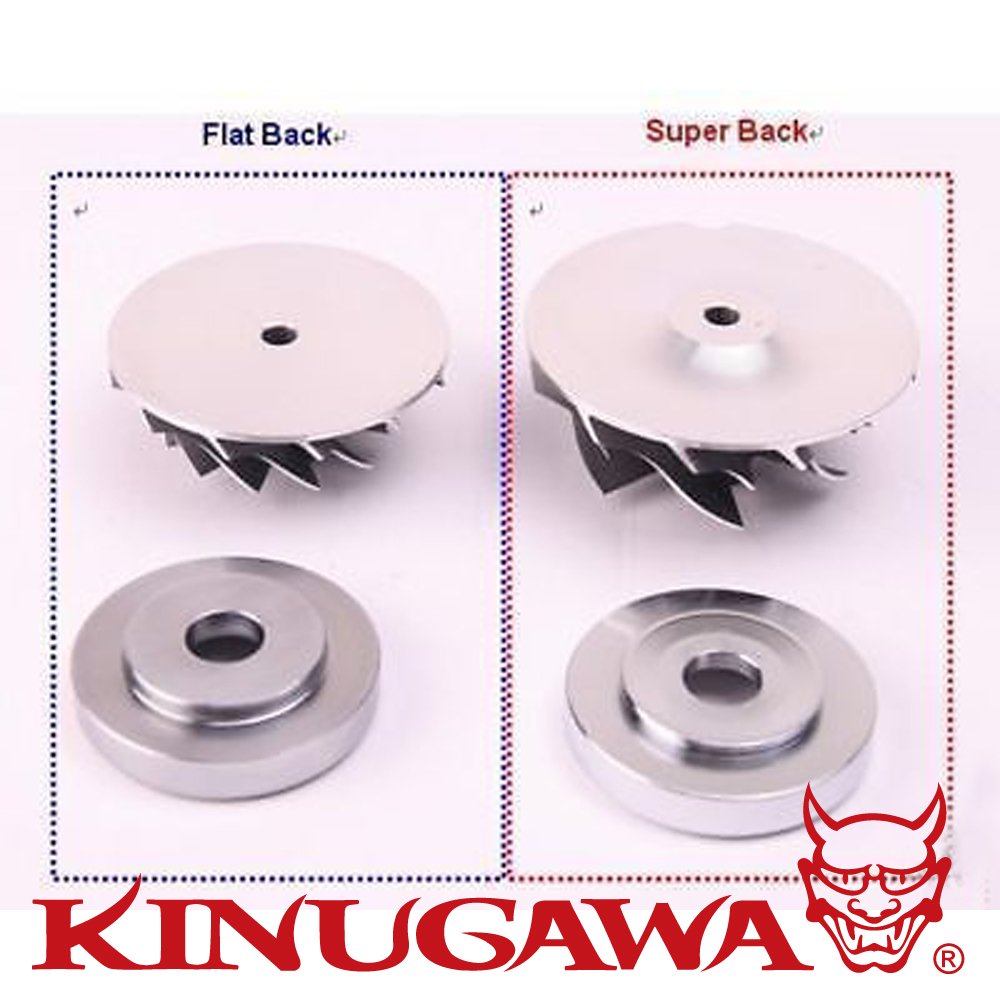

- Mitsubishi / Kinugawa / Greddy / Trust TD04, TD04L, TD04H, TD04HL Turbocharger with Super Back Compressor Wheel
- Subaru WRX/STI/FXT w/49377-04100, 49177-04200 TD04L-13T Turbo.
- Super Back Only
|
| Kit Includes |
- 1 x Shaft Nut
- 1 x Snap Ring (Insert Retainer)
- 1 x Insert (Seal Plate)
- 1 x Piston Ring (Compressor End)
- 1 x Oil Deflector
- 1 x Thrust Flinger /Sleeve
- 1 x Small "O" Ring (Seal Plate)
- 1 x Thrust Bearing
- 1 x Thrust Ring /Collar
- 2 x Journal Bearing
- 2 x Retaining Ring (Journal Bearing)
- 1 x Big "O" Ring (Bearing Hsg to Comp. Hsg)
- 1 x Gasket (Oil Return)
- 1 x Piston Ring (Turbine End)
|
| Made By |
|
| Warranty |
|
Please note, due to the number of turbo configurations, and a large variety of fitting kits, Kinugawa orders are custom made to order (please allow 7-10 working days)
