Turbo Rebuild Kit for TD04HL w/13G Wheels

Production Information
Item Name	Kinugawa Turbo Rebuild Kit - TD04HL w/13G Wheels
Application	Kinugawa / Mitsubishi / Greddy TD04HL-3G Series Turbocharger
Wheel Spec	Compressor wheel: TD04-13G (41.5 / 56.0 mm) Turbine wheel : TD04HL (45.6 / 52.0 mm)/11 Blade

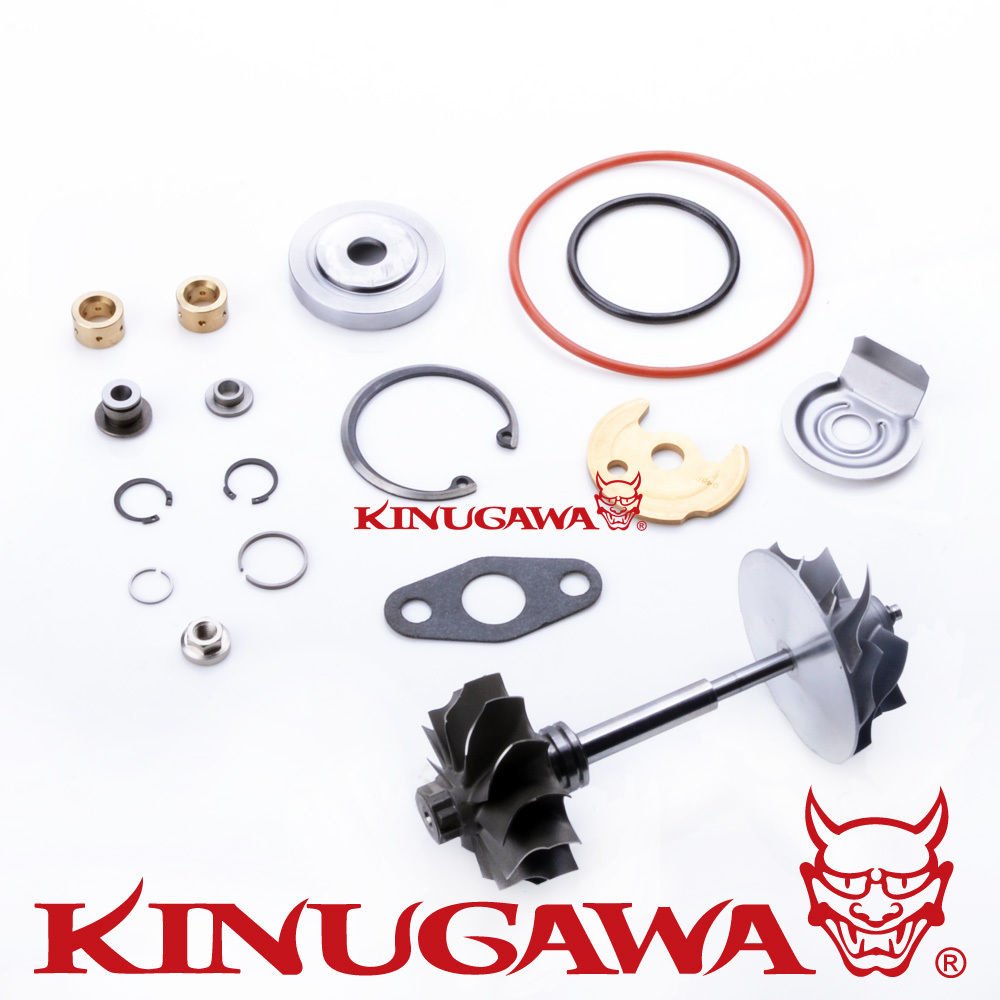

Kit Includes	1 x Shaft Nut 1 x Snap Ring (Insert Retainer) 1 x Insert (Seal Plate) 1 x Piston Ring (Compressor End) 1 x Oil Deflector 1 x Thrust Flinger /Sleeve 1 x Small "O" Ring (Seal Plate) 1 x Thrust Bearing 1 x Thrust Ring /Collar 2 x Journal Bearing 2 x Retaining Ring (Journal Bearing) 1 x Big "O" Ring (Bearing Hsg to Comp. Hsg) 1 x Gasket (Oil Return) 1 x Piston Ring (Turbine End) TD04HL turbine wheel TD04-13G compressor wheel
Made By	Kinugawa turbo
Warranty	One Year

Please note, due to the number of turbo configurations, and a large variety of fitting kits, Kinugawa orders are custom made to order (please allow 7-10 working days)
