| Production Information |
| Item Name |

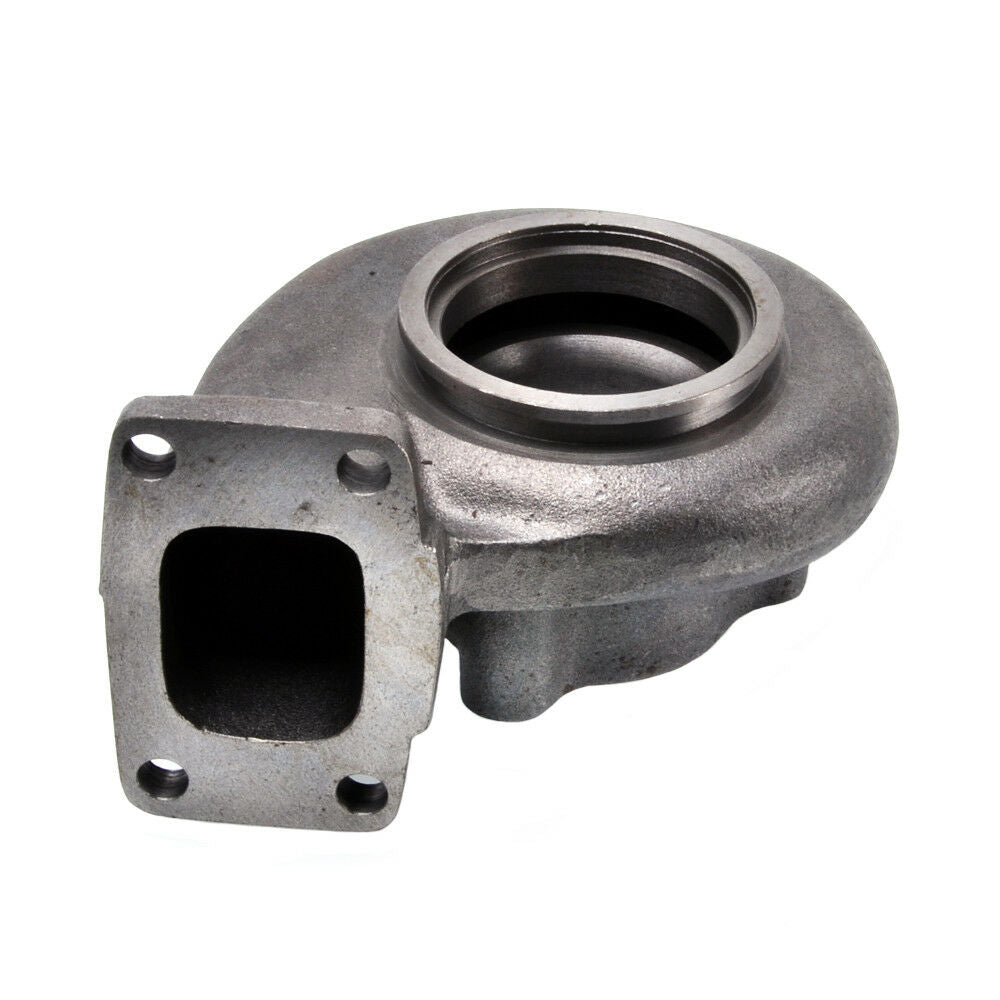

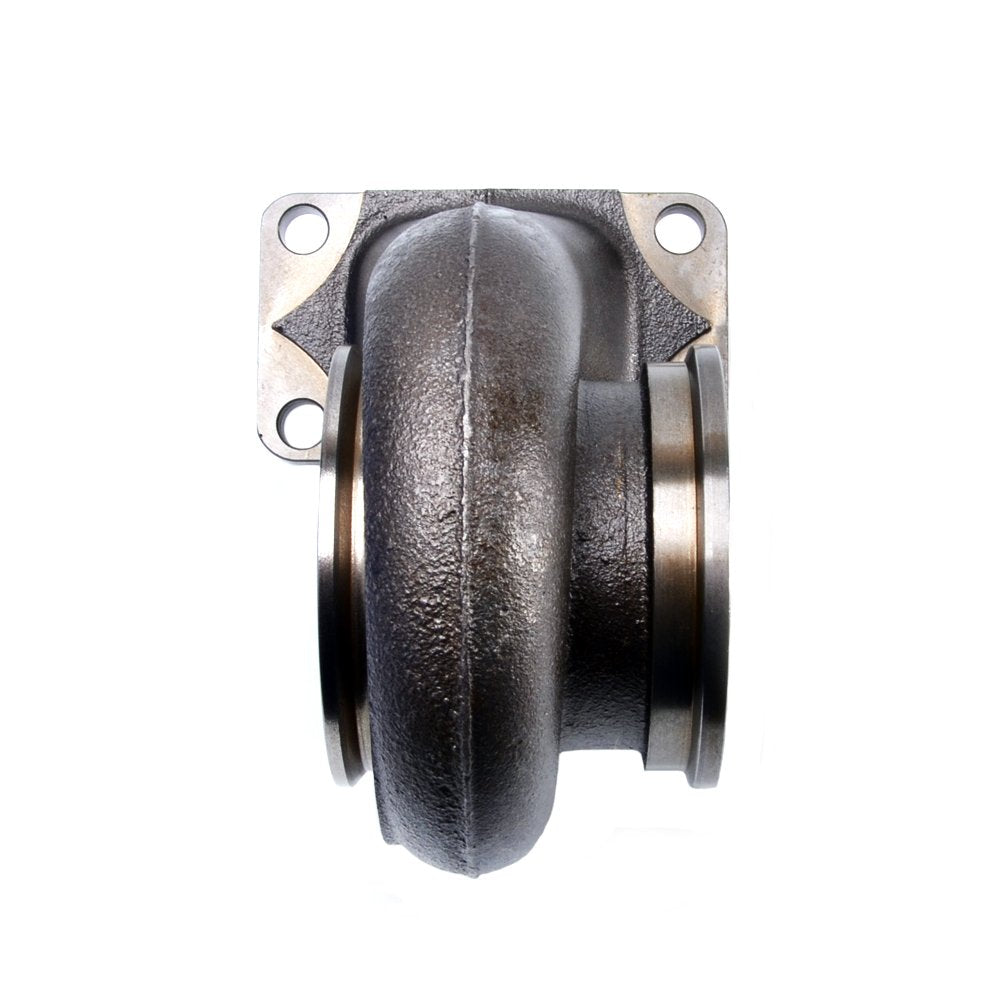

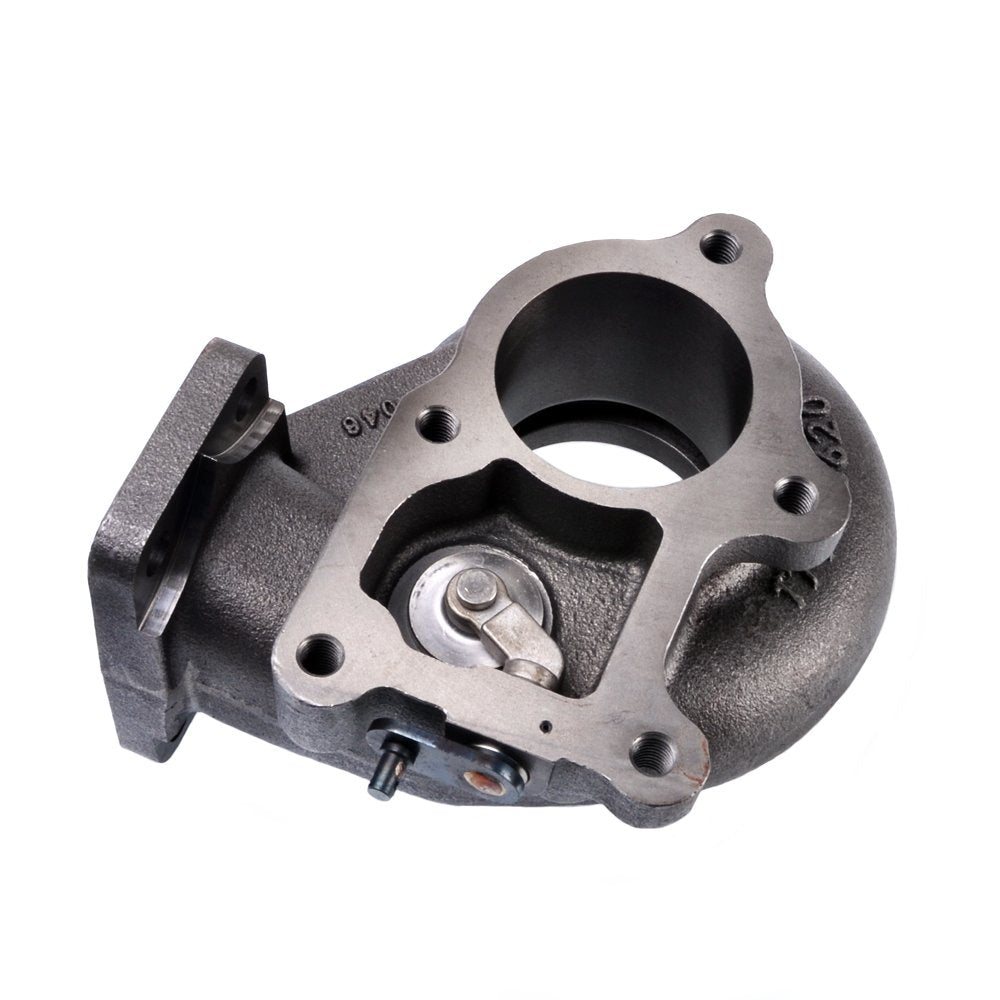

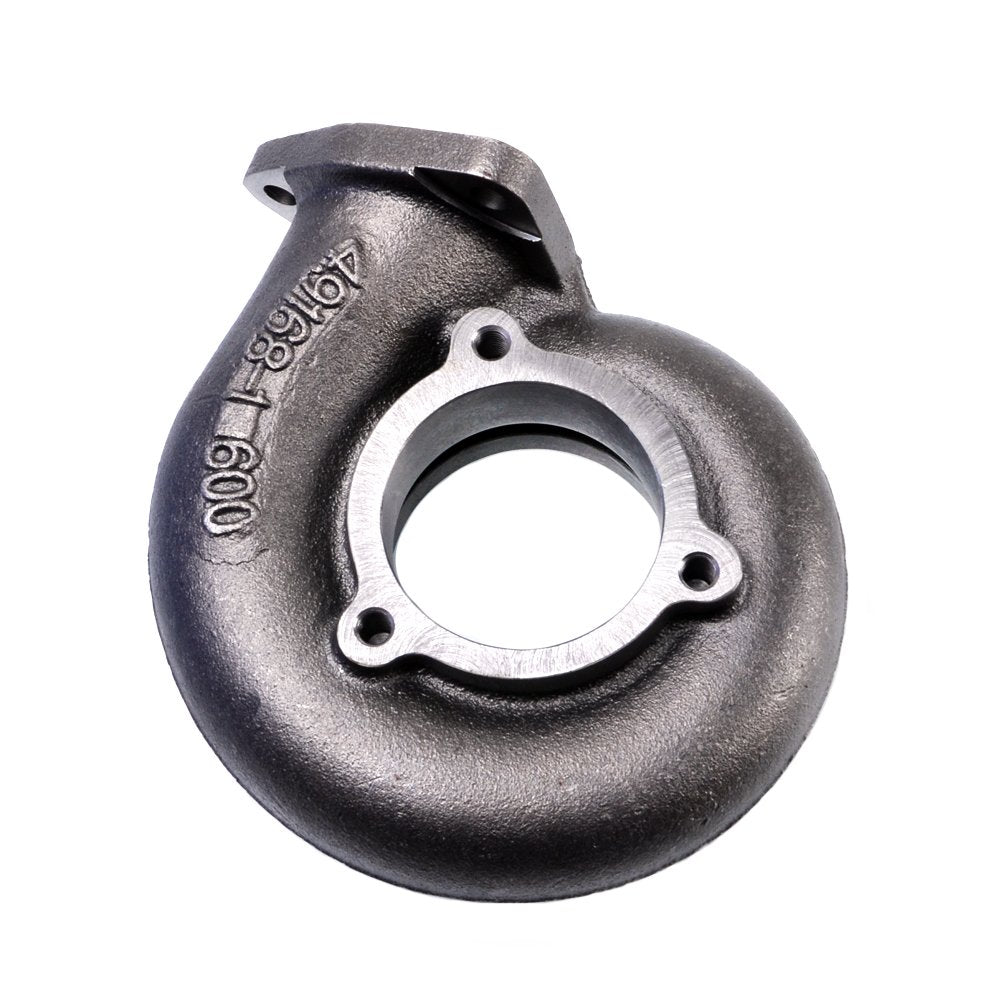

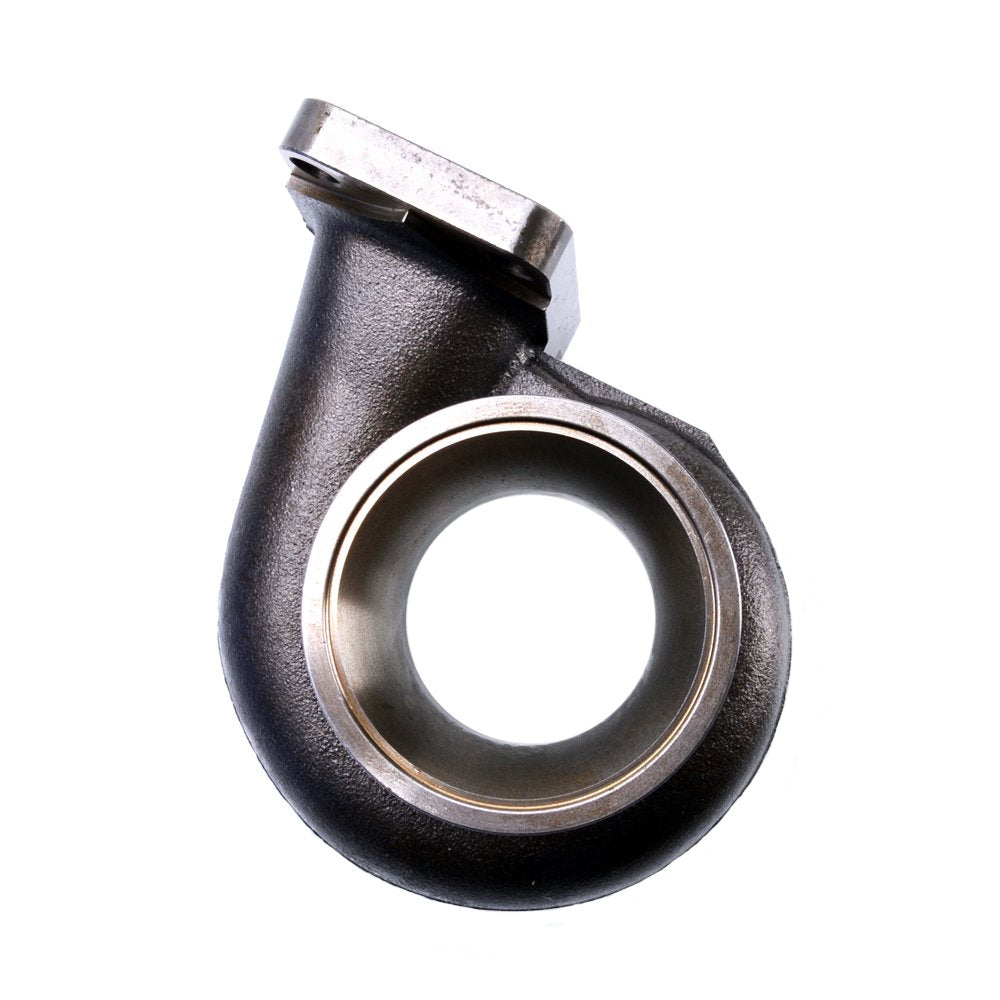

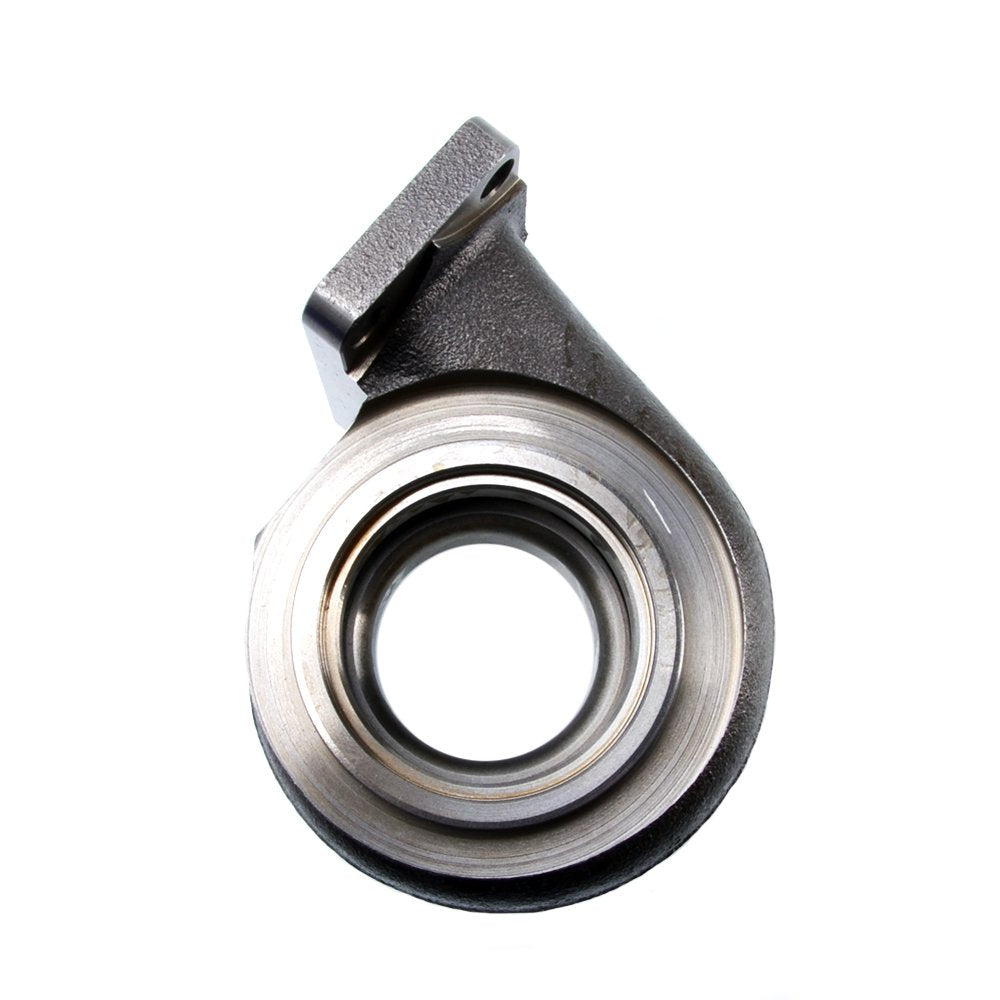

- Kinugawa Turbine Housing - TD06H
|
| Application |
- Kinugawa TD06H, TD06SH, TE06H
- Mitsubishi / Greddy: TD06H, TD06SH, TE06H
|
| Turbine Wheel Fit |
- Turbine Wheel TD06H (Inducer/Exducer) : 67.2/58.8 mm
|
| Turbine Housing |

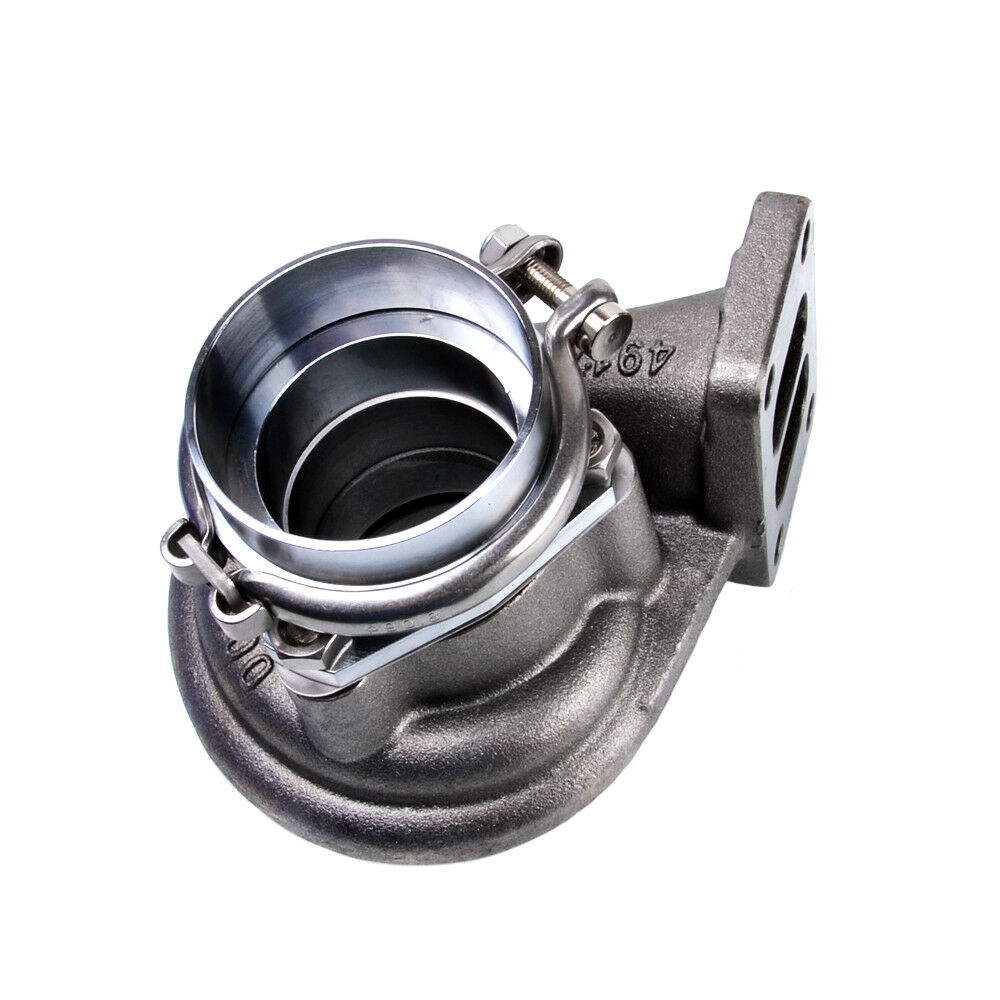

- T3 8cm AR .57: External Gate, T3 Inlet, V-Band Outlet
- T3 10cm AR .73: External Gate, T3 Inlet, V-Band Outlet
- T3 12cm AR .89: External Gate, T3 Inlet, V-Band Outlet
- T3 14cm AR 1.05: External Gate, T3 Inlet, V-Band Outlet

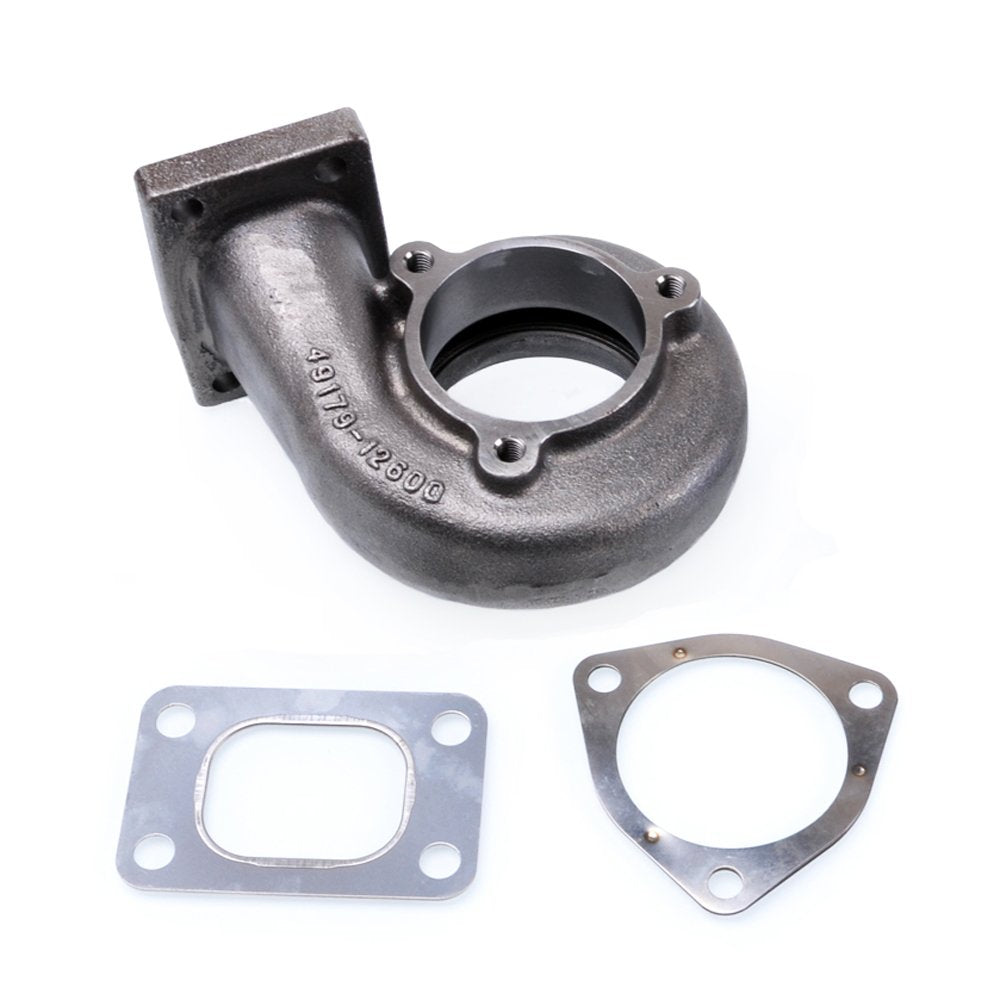

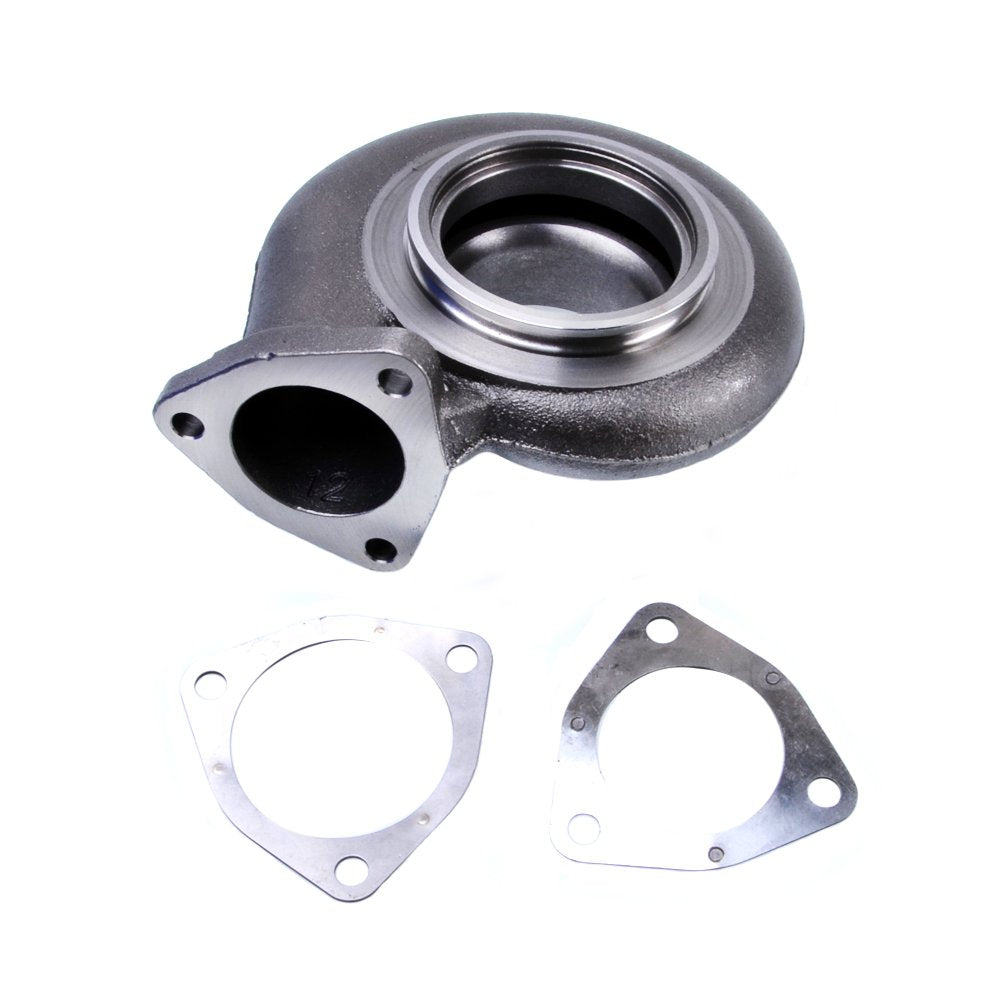

- T25 8cm AR .57: External Gate, T3 Inlet, 3-Bolt Outlet
- T25 10cm AR .73" External Gate, T25 Inlet, V-Band Outlet
- T3 12cm AR .89: External Gate, T3 Inlet, 3-Bolt Outlet
|

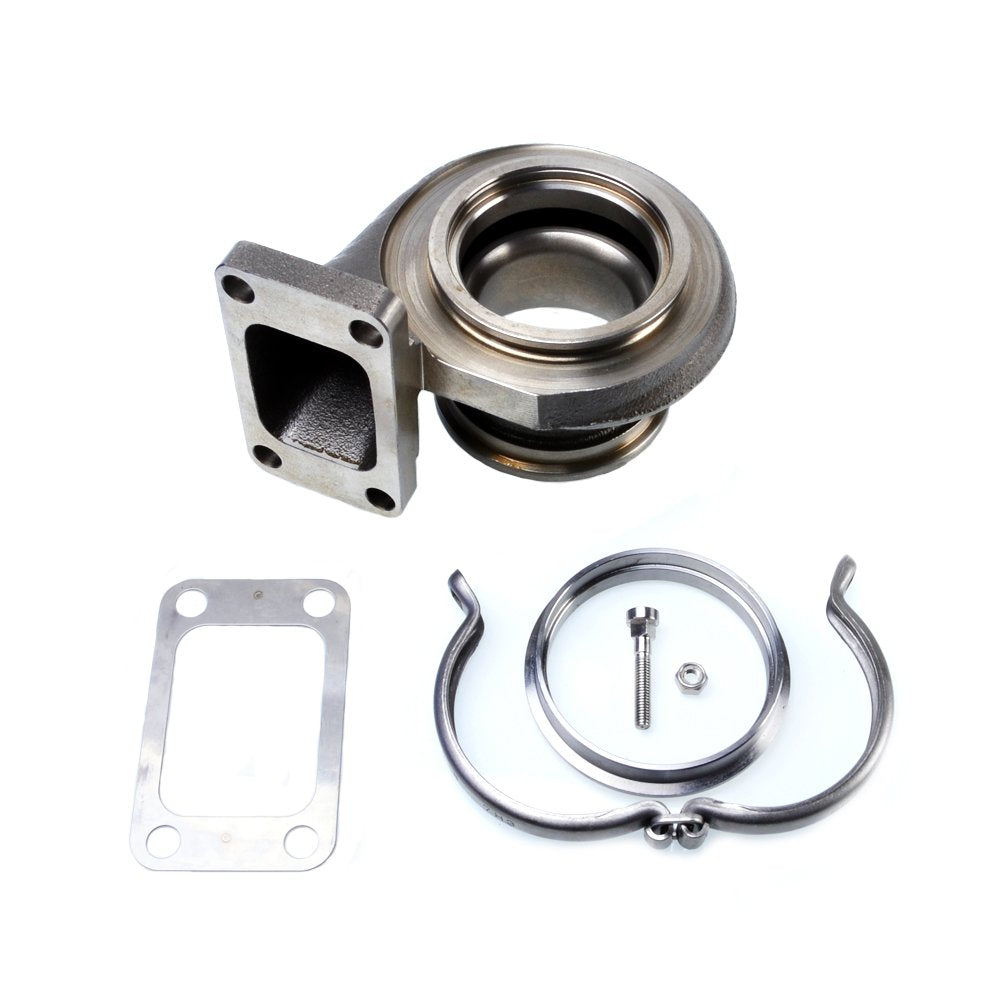

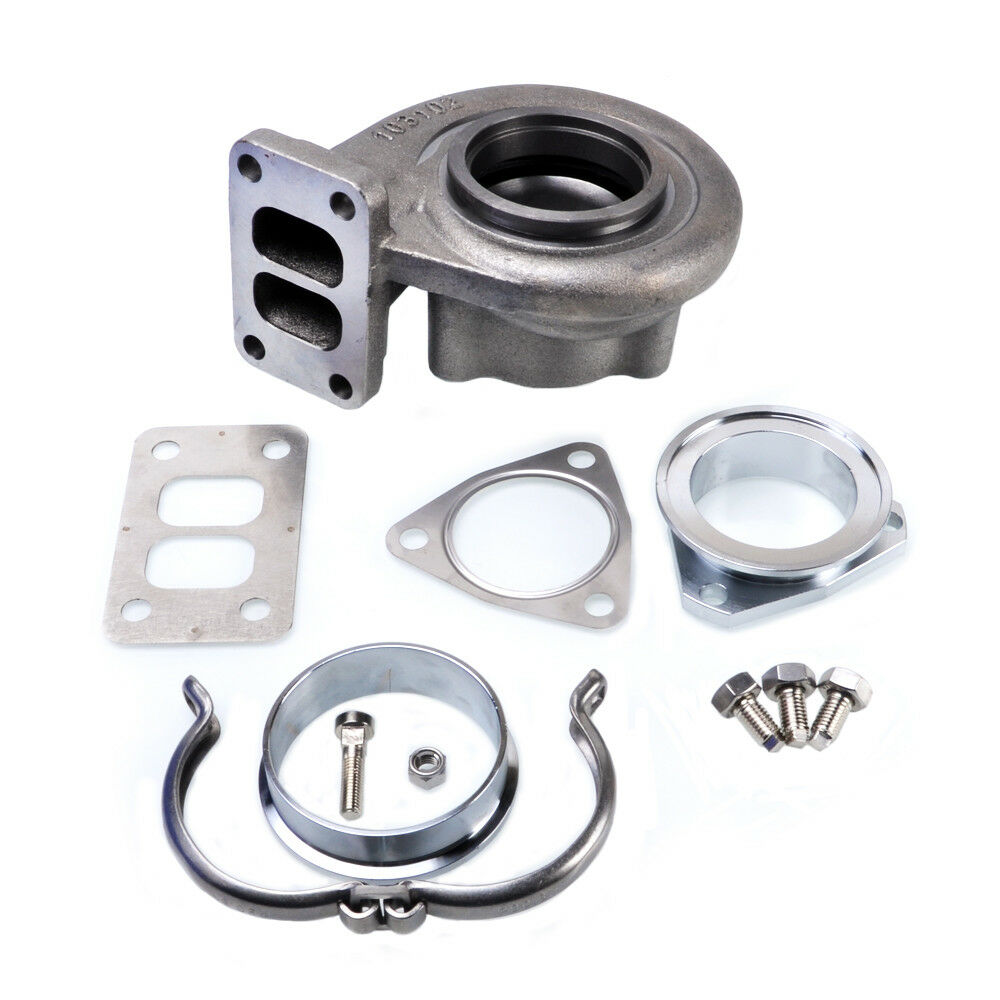

| Kit Includes |
- 1 x Turbine Housing
- 1 x Inlet Gasket
- 1 x Outlet Gasket (if required)
- 1 x Outlet V-Band Clamp Set (If Required)
- Everything in photo included
|
| Made By |
|
| Warranty |
|
Please note, due to the number of turbo configurations, and a large variety of fitting kits, Kinugawa orders are custom made to order (please allow 7-10 working days)
