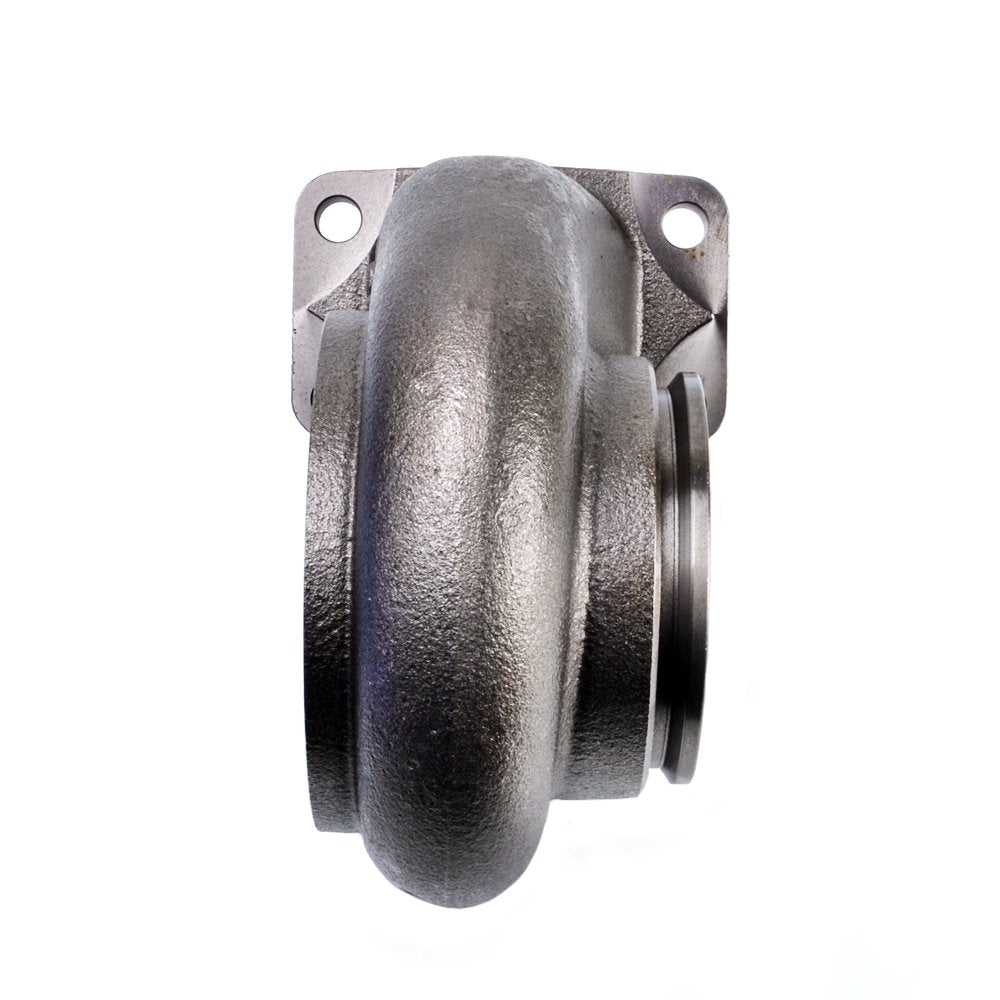

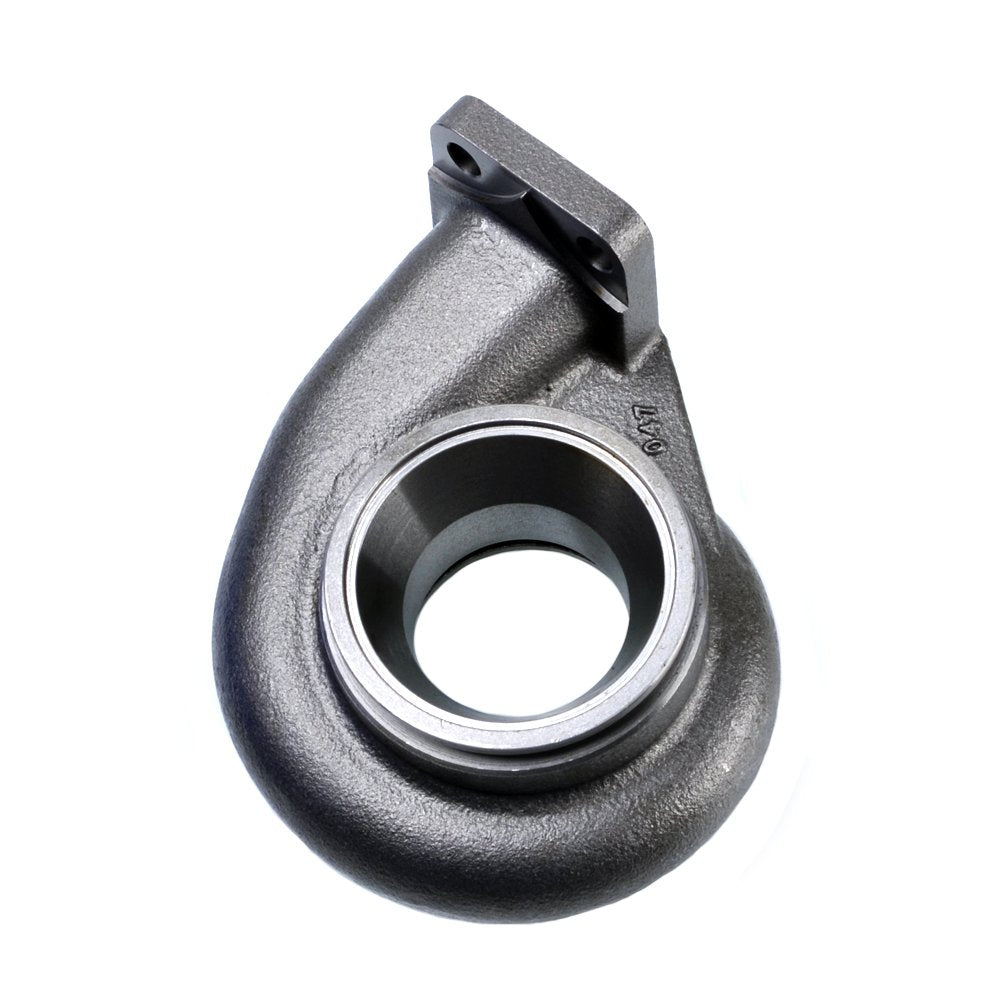

Turbine Housing for GT30R / GTX3076R 60.0mm

Production Information
Item Name	Kinugawa Turbine Housing - GT30R / GTX3076R 60.0mm
Application	HKS GT3037 Garrett GTX3067R : 824727-1, 700177-47 Garrett GTX3071R : 803712-1, 700177-46 Garrett GT3076R : 700382-12, 700177-7 Garrett GTX3076R : 803713-1, 700177-42 Fit wheel spec : Major 60.0 mm 84 trim only, please confirm stock turbo trim before ordering Note: This Housing can’t fit GT3071R 700177-23 or GT3076R 700177-18 Due to heat shield is not compatible
Turbine Wheel Fit	Turbine Wheel : Major 60.0 mm
Turbine Housing	A/R .57: External Gate, T25 Inlet, V-Band Outlet A/R .82: External Gate, T3 Inlet, V-Band Outlet A/R .63 External Gate, T3 Inlet, V-Band Outlet (stainless steel) A/R .73 External Gate, T3 Inlet, V-Band Outlet A/R .82 External Gate, T3 Inlet, V-Band Outlet A/R .82 External Gate, T3 Inlet, V-Band Outlet (stainless steel) A/R 1.06 External Gate, T3 Inlet, V-Band Outlet (stainless steel) A/R .83 External Gate, T3 Twin-Scroll Inlet, V-Band Outlet A/R .85 External Gate, T4 Inlet, V-Band Outlet A/R 1.05: External Gate, T4 Inlet, V-Band Outlet A/R .86 External Gate, T4 Twin-Scroll Inlet, V-Band Outlet A/R .82 External Gate, 3-Bolt Inlet, 3-Bolt Outlet A/R .82 External Gate, 3-Bolt Inlet, V-Band Outlet (via adaptor) A/R .61 External Gate, V-Band Inlet, V-Band Outlet A/R .64 Internal Gate, V-Band Inlet, 5-Bolt Outlet A/R .83 External Gate, V-Band Inlet, V-Band Outlet A/R .61 External Gate, Twin-Scroll V-Band Inlet, V-Band Outlet A/R .83 External Gate, Twin-Scroll V-Band Inlet, V-Band Outlet A/R 1.01 External Gate, Twin-Scroll V-Band Inlet, V-Band Outlet

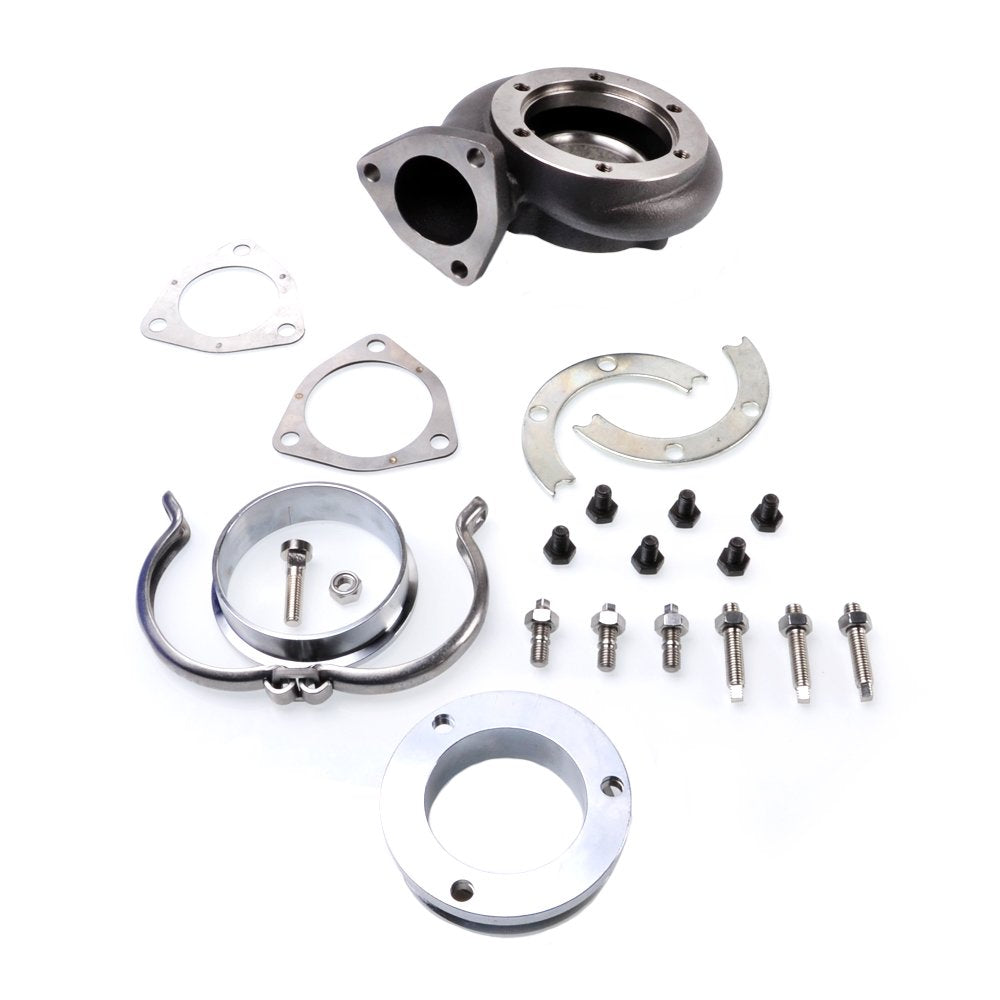

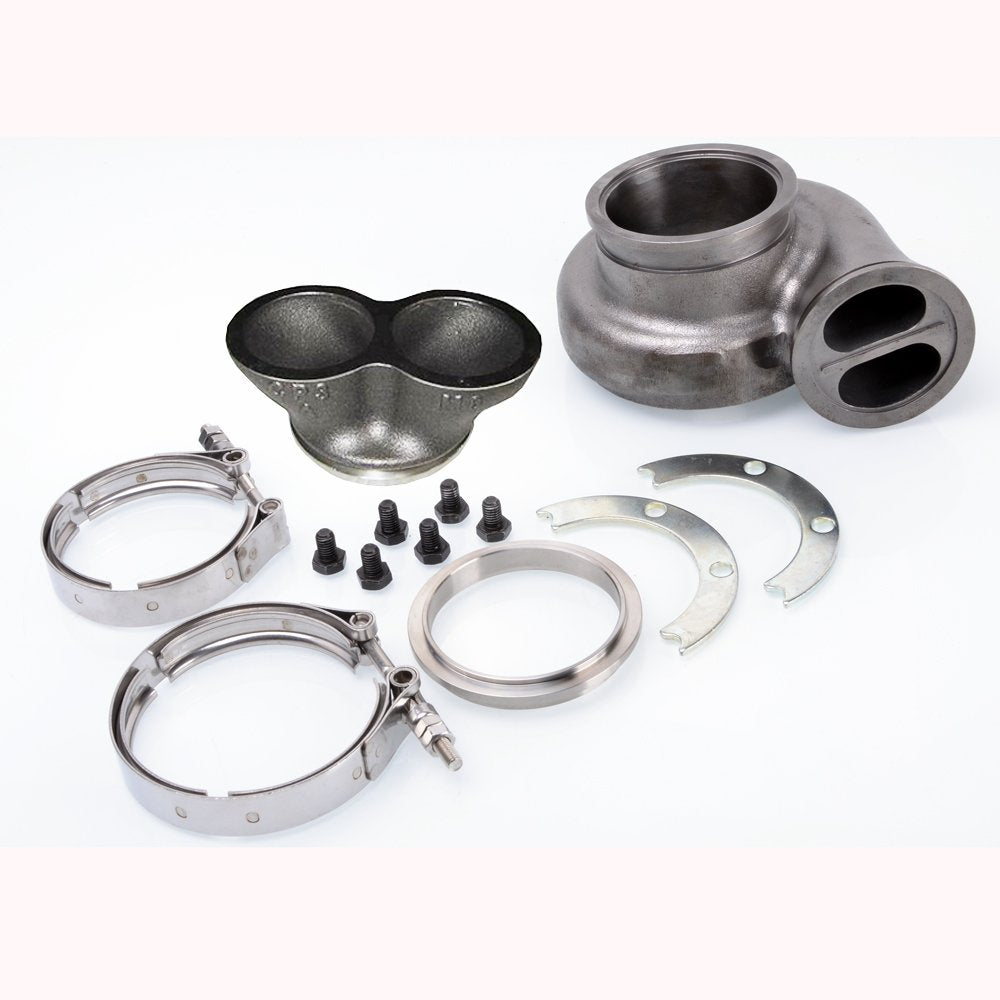

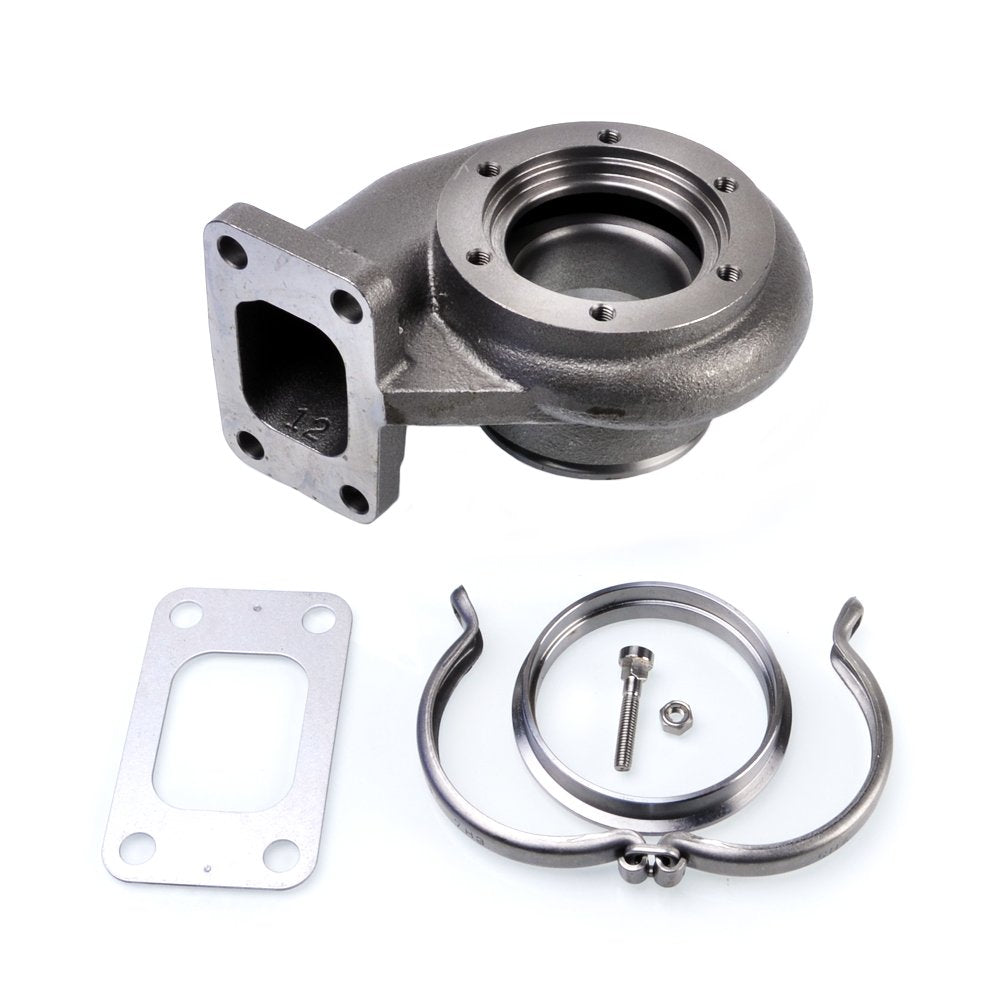

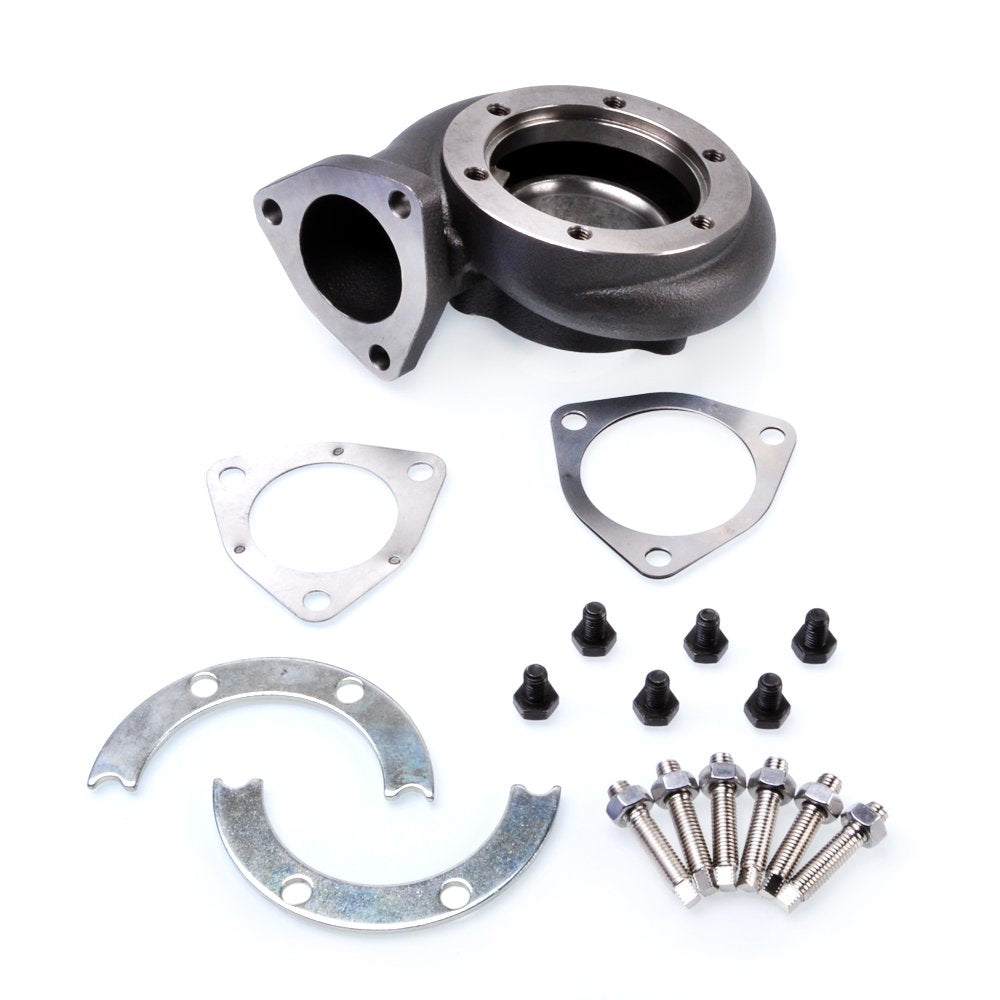

Kit Includes	1 x Turbine housing 1 x Lock Plate and Bolt set 1 x Turbine inlet gasket (if required) 1 x Turbine inlet flange (if required) 1 x Turbine inlet V-band kit (if required) 1 x Turbine outlet gasket (if required) 1 x Turbine outlet flange (if required) 1 x Turbine outlet V-band kit (if required) Everything in photo included
Made By	Kinugawa turbo
Warranty	One Year

Please note, due to the number of turbo configurations, and a large variety of fitting kits, Kinugawa orders are custom made to order (please allow 7-10 working days)
