| Production Information |
| Item Name |

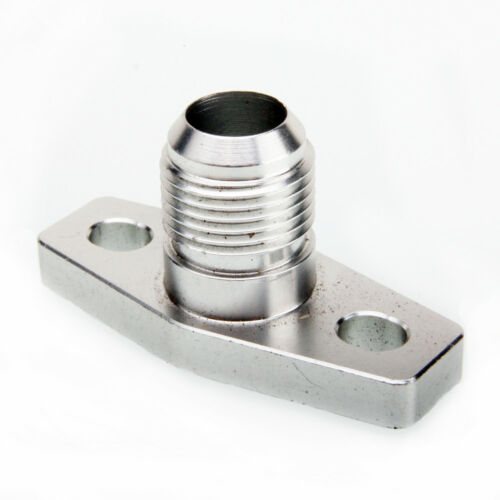

- Kinugawa Oil Return Flange - TD04/TD05/TD06 8AN
|
| Application |
- Mitsubishi TD015, TD02, TD03, TD04, TD04, TD06, TF035HM, TF035HL turbo
- IHI RHF4, RHF5, RHF55 turbo
- Any turbo with 38.1~41 mm central bolt to bolt oil return flange with M6x1.0mm bolt hole
|
| Specification |
- Bolt Spacing : 38.1 mm central bolt to bolt
- Bolt : M6 x 1.0 mm
- Male 8AN Flare Fitting
|
| Material |
|
| Kit Includes |
- 1 x Oil Return Flange
- 2 x M6 x 1.0 bolt with spring washer
- 1 x Gasket
|
| Made By |
|
| Warranty |
|
Please note, due to the number of turbo configurations, and a large variety of fitting kits, Kinugawa orders are custom made to order (please allow 7-10 working days)
