• Kinugawa Oil Return Flange - Garrett T25/T28/TB25/TB28 3/4" Barb 312-03008-008
1 1

Kinugawa

Oil Return Flange for Garrett T25/T28/TB25/TB28 3/4" Barb

Oil Return Flange for Garrett T25/T28/TB25/TB28 3/4" Barb

Delivery Usually in 7–10 Days ? This item is assembled to order and shipped directly from the manufacturer.

$55.00 AUD
$55.00 AUD $55.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Need help? Ask us a question!

Call Us
View full details

Now Accepting

Afterpay Zip Pay in 4

Description

Production Information
Item Name
  • Kinugawa Oil Return Flange - Garrett T25/T28/TB25/TB28 3/4" Barb
Application
  • Garrett TB2525 14411-44F00, 14411-44F01 Turbo 88-94 Nissan 180SX Turbo 16V (S13) CA18DET
  • Garrett TB2559 452083-1S Turbo Saab 9000 2.0 2.3 Petrol B204 B234 engine
  • Garrett T2, T25, T28 turbo oil return bolt spacing is 44.0 mm turbo
Specification
  • Bolt Spacing : 44.0 mm central bolt to bolt
  • Bolt : M8 x 1.25 mm
  • Flare : Female 1/2 PT
  • Fitting : 3/4" Barb
Material
  • Billet Aluminium

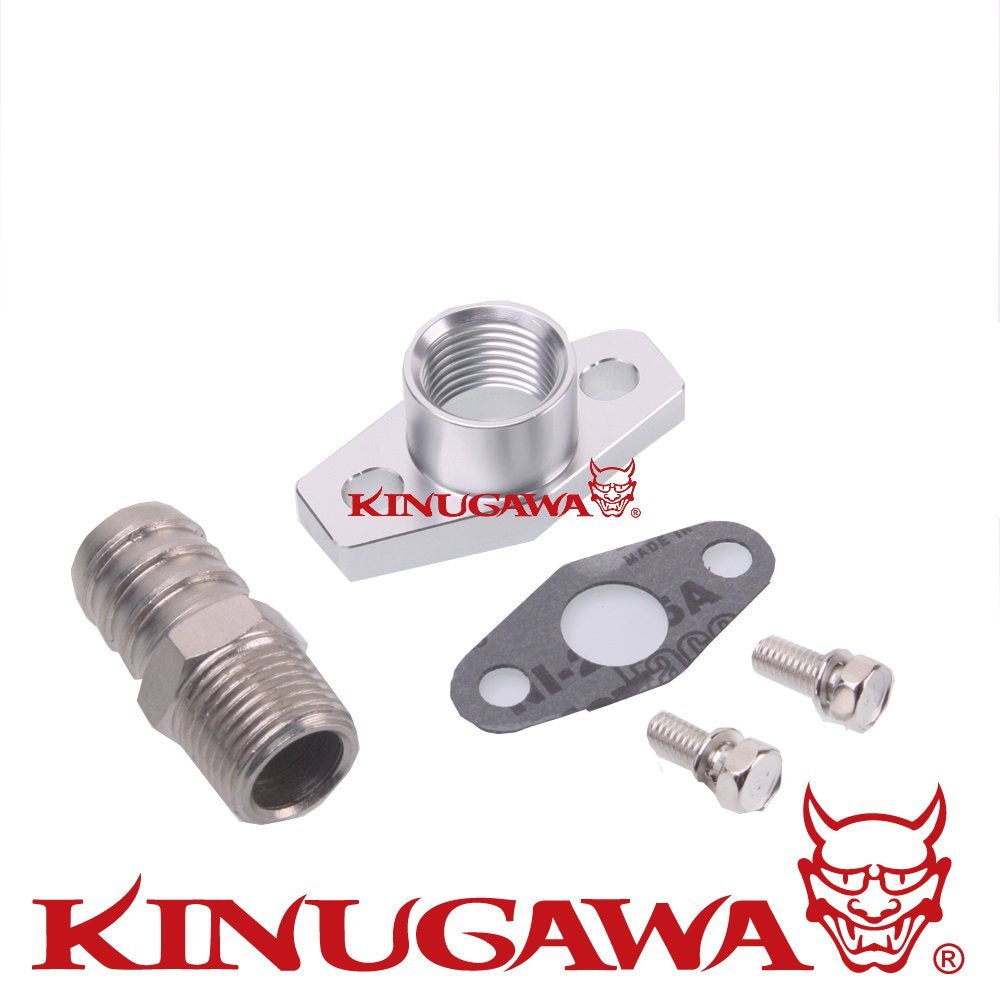

Kit Includes
  • 1 x oil return flange
  • 1 x oil return gasket
  • 2 x M8 bolt with spring washer
  • 1 x 1/2PT to 3/4" barb fitting
Made By
  • Kinugawa turbo
Warranty
  • One Year
Please note, due to the number of turbo configurations, and a large variety of fitting kits, Kinugawa orders are custom made to order (please allow 7-10 working days)
