| Production Information |
| Item Name |
- Kinugawa Compressor Upgrade Kit - Subaru WRX/FXT TD04L
|
| Application |
- Subaru WRX w/TF04L TD04HL Turbo
- Subaru Forester w/TF04L TD04HL Turbo

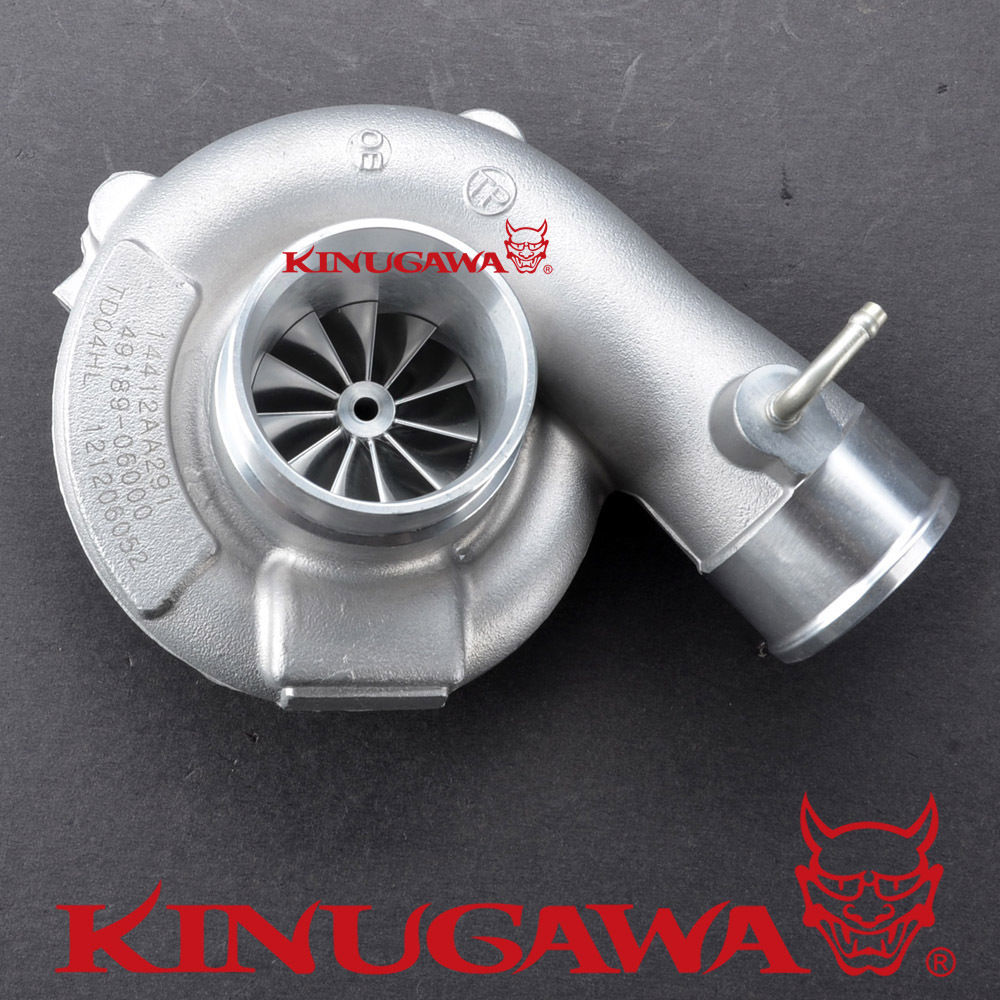

- Upgrade Stock TD04L-13T to 19T Billet Turbocharger
- Note: Groove of Bearing Housing needs machining to fit TD04-19T wheel larger exducer diameter.
- Note: Bearing Housing needs machining to fit TD04-20T wheel larger exducer diameter.
|
| Compressor Wheel |
- Compressor Wheel 19T (Inducer/Exducer) : 46.0/58.0 mm
- Compressor Wheel 20T (Inducer/Exducer) : 47.0/58.0 mm
|
| Compressor Housing |
- Inlet Diameter: 56mm
- Outlet Diameter: 47.6mm
|
| Kit Includes |

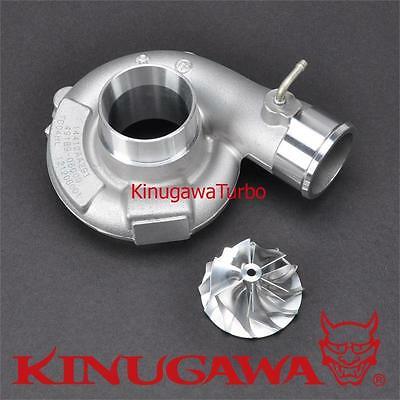

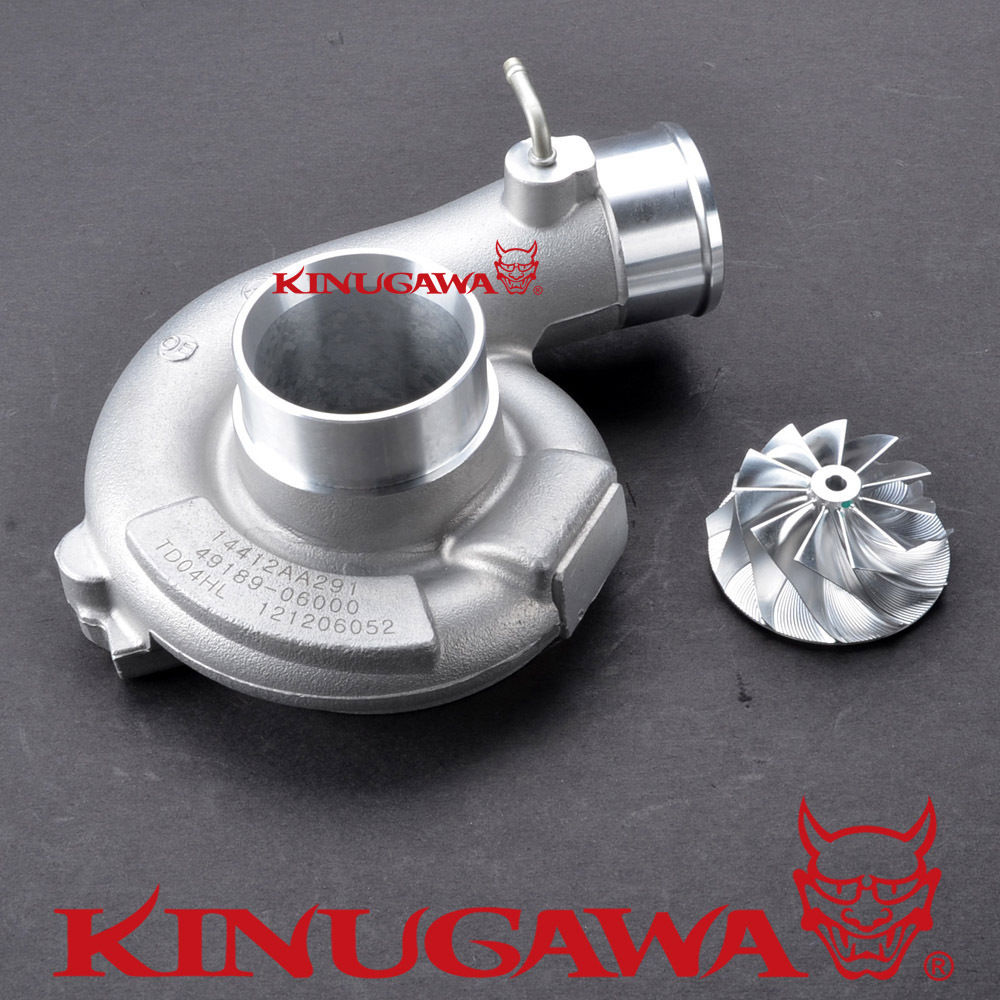

- 1 x TD04 Compressor Housing machined to fit Billet Wheel.
- 1 x Billet Compressor Wheel (All you see on picture is included )
|
| Made By |
|
| Warranty |
|
Please note, due to the number of turbo configurations, and a large variety of fitting kits, Kinugawa orders are custom made to order (please allow 7-10 working days)
