| Production Information |
| Item Name |
- Kinugawa Compressor Upgrade Kit - 3" TD05/TD06
|
| Application |
- Upgrade Kinugawa / Mitsubishi / Greddy TD05/TD06 Turbo to TD06/TD06SL2/TD06H turbo w/3“ Inlet
- Needs super back rebuild kit if stock turbo compressor wheel is flat back wheel such as 14C, 17C, 19C, 14B
- Note: This cover cannot fit Small 16G Wheel
|
| Compressor Wheel Fit |
- Compressor Wheel 16G (Inducer/Exducer) : 48.3/68.0 mm
- Compressor Wheel 18G (Inducer/Exducer) : 50.3/68.0 mm
- Compressor Wheel 20G (Inducer/Exducer) : 52.3/68.0 mm
- Compressor Wheel 60-1 (Inducer/Exducer) : 59.5/76.0 mm
- Compressor Wheel 25G (Inducer/Exducer) : 60.2/78.0 mm
|
| Compressor Housing |
- Inlet diameter 16G/18G/20G/60-1 : 76 mm
- Inlet diameter 25G: 80 mm
- Outlet diameter 16G/18G/20G/25G: 51 mm
|
| Kit Includes |

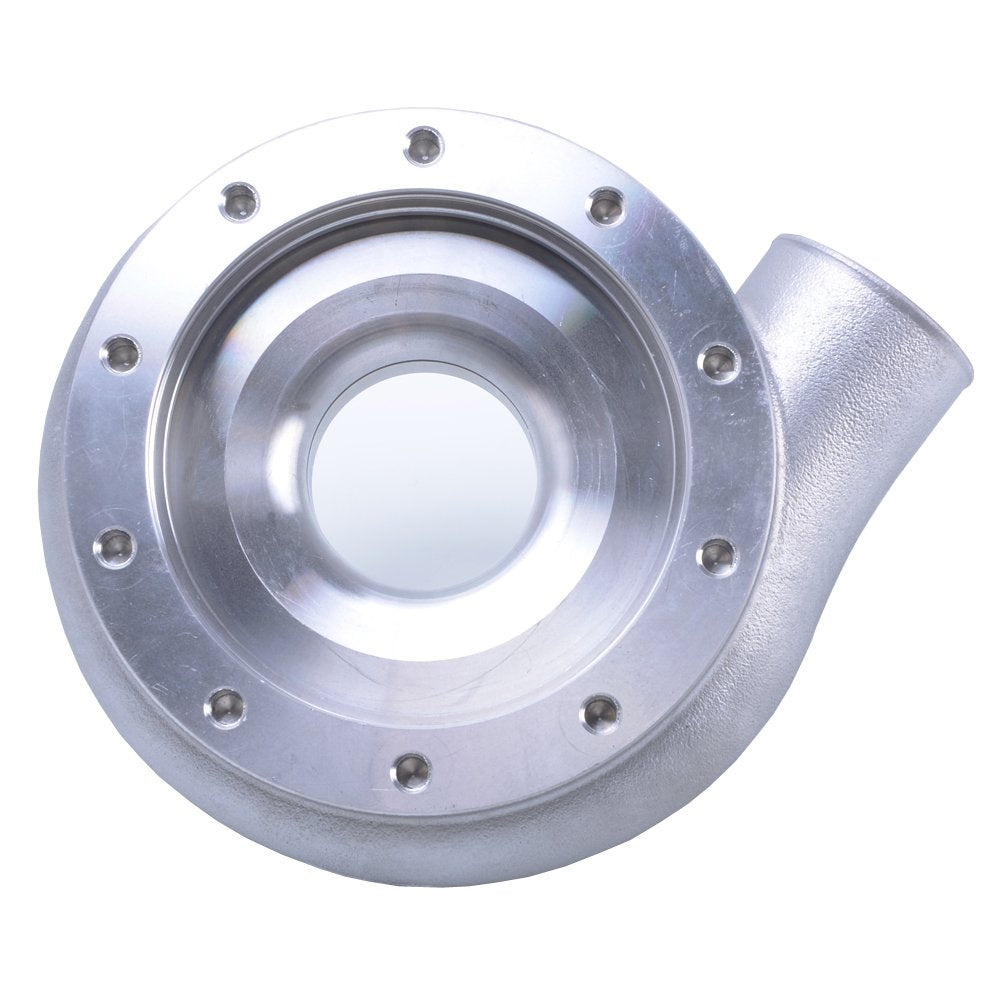

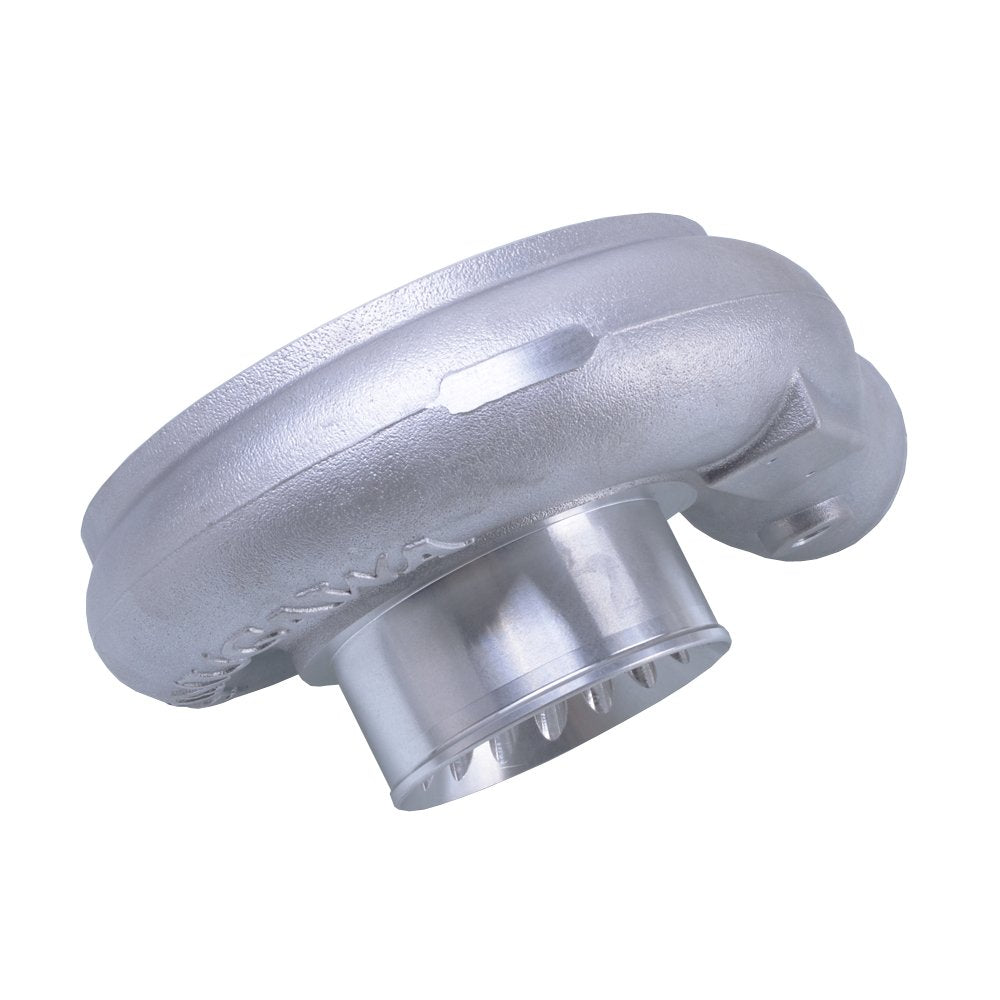

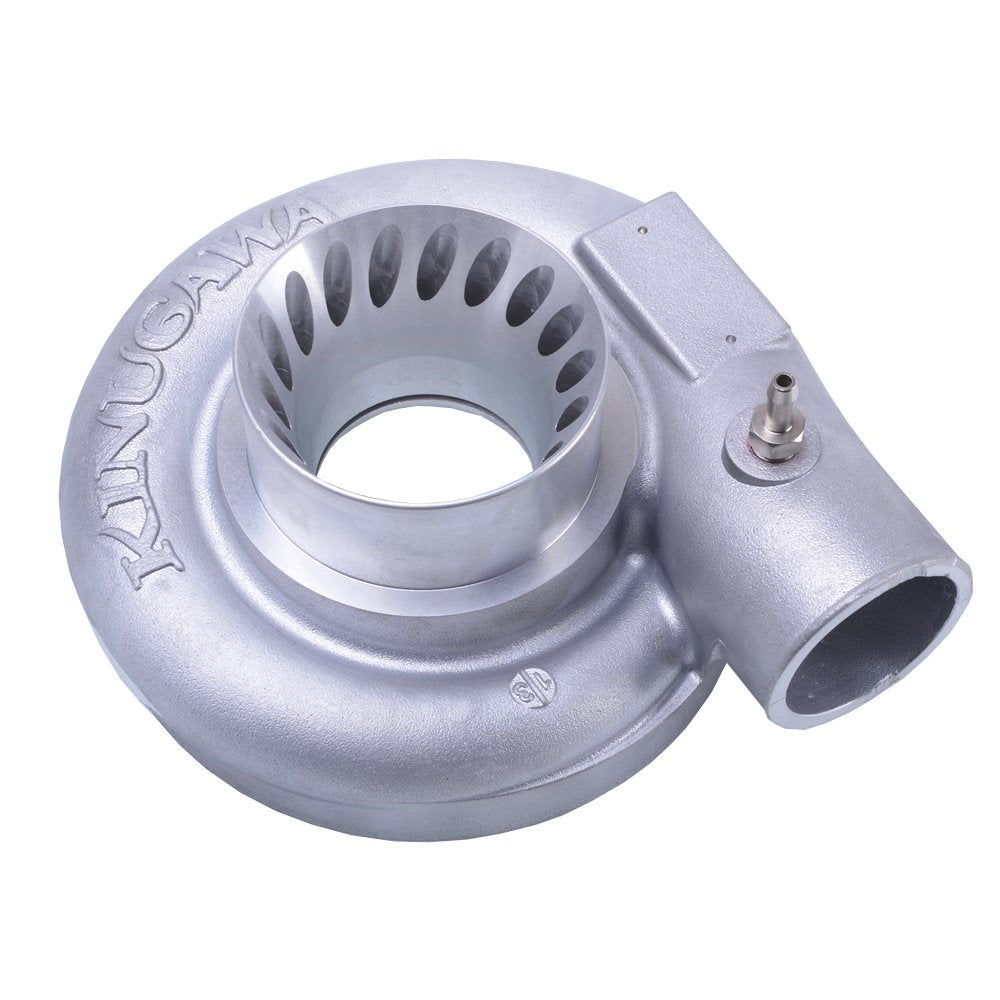

- 1 x Compressor Housing
- 1 x Compressor Wheel

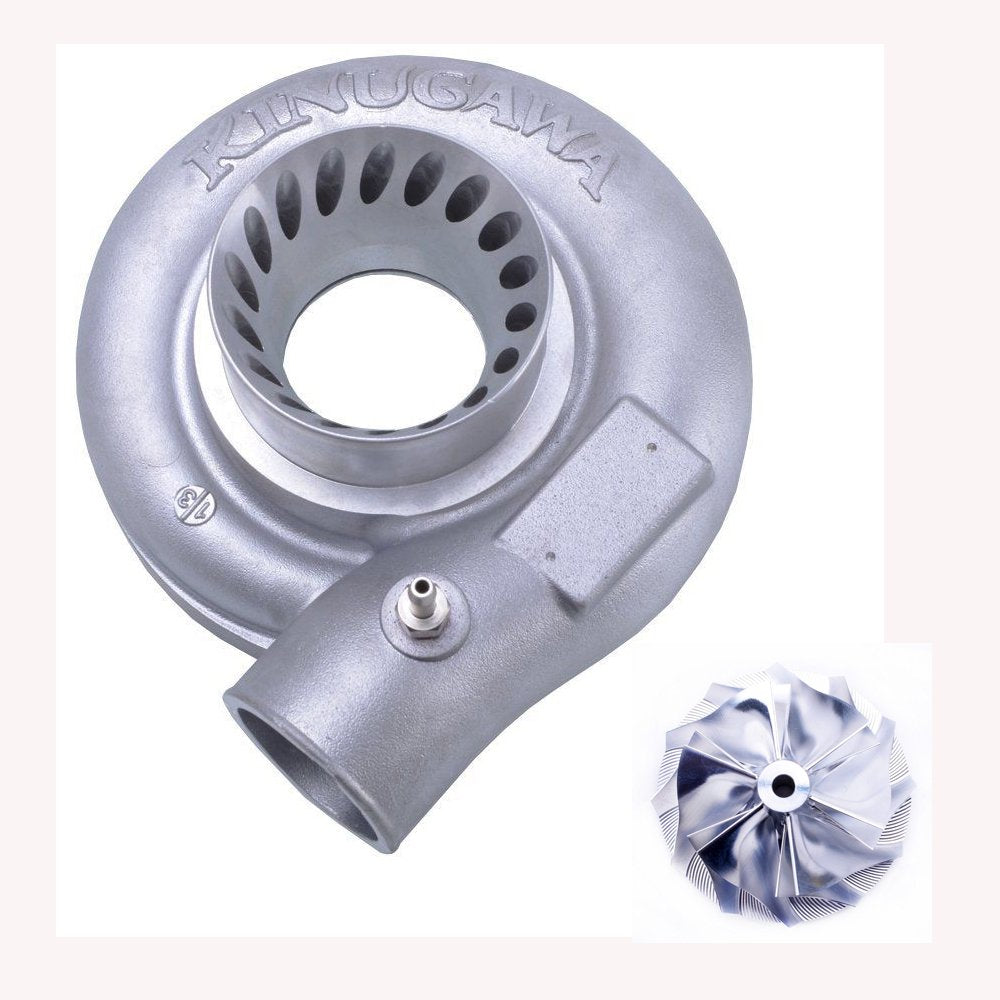

- Everything in photo included
|
| Made By |
|
| Warranty |
|
Please note, due to the number of turbo configurations, and a large variety of fitting kits, Kinugawa orders are custom made to order (please allow 7-10 working days)
