| Production Information |
| Item Name |

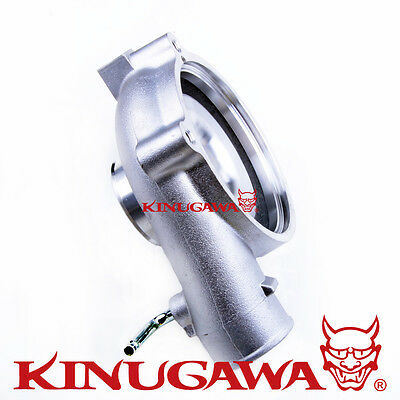

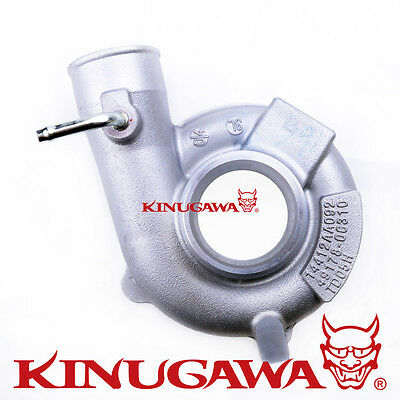

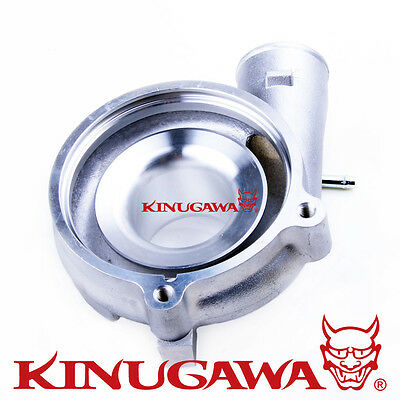

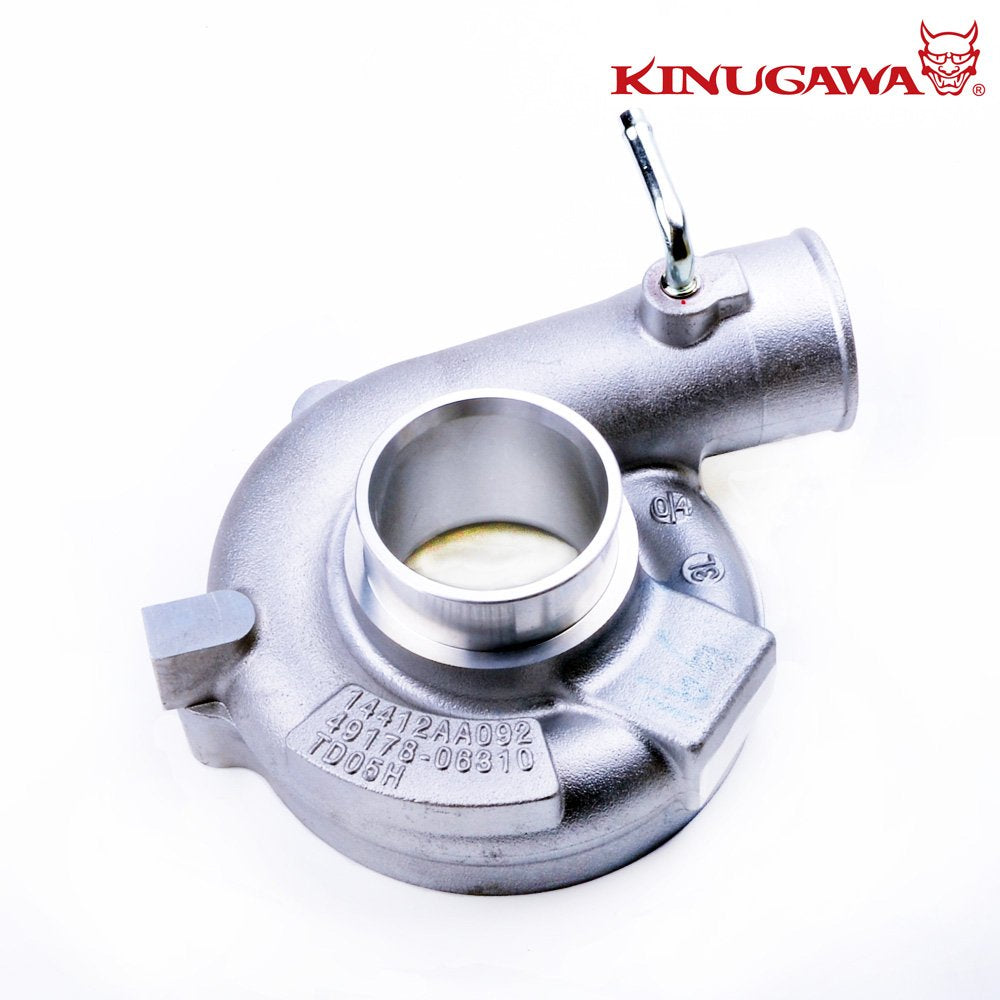

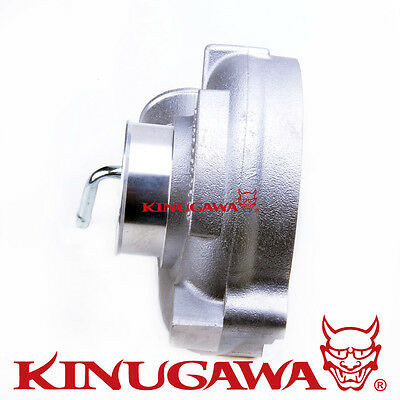

- Kinugawa Compressor Housing - TD05H
|
| Application |
- Upgrade your Mitsubishi/Greddy/Trust smaller TD05H Turbo to big 16G/18G/20G Wheel
- Upgrade SUBARU WRX/STI/FXT stock TD05H small 16G turbo to big 16G/18G/20G Wheel
- Needs super back rebuild kit if stock turbo compressor wheel is flat back wheel such as 14C, 17C, 19C, 14B
- Note: This cover cannot fit Small 16G Wheel
|
| Compressor Wheel Fit |
- Compressor Wheel 16G (Inducer/Exducer) : 48.3/68.0 mm
- Compressor Wheel 18G (Inducer/Exducer) : 50.3/68.0 mm
- Compressor Wheel 20G (Inducer/Exducer) : 52.3/68.0 mm
|
| Compressor Housing |
- Inlet diameter : 56 mm
- Outlet diameter : 47.6 mm
- 0.48 A/R
|
| Kit Includes |
- 1 x Compressor Housing
- Everything in photo included
|
| Made By |
|
| Warranty |
|
Please note, due to the number of turbo configurations, and a large variety of fitting kits, Kinugawa orders are custom made to order (please allow 7-10 working days)
