| Production Information |
| Item Name |

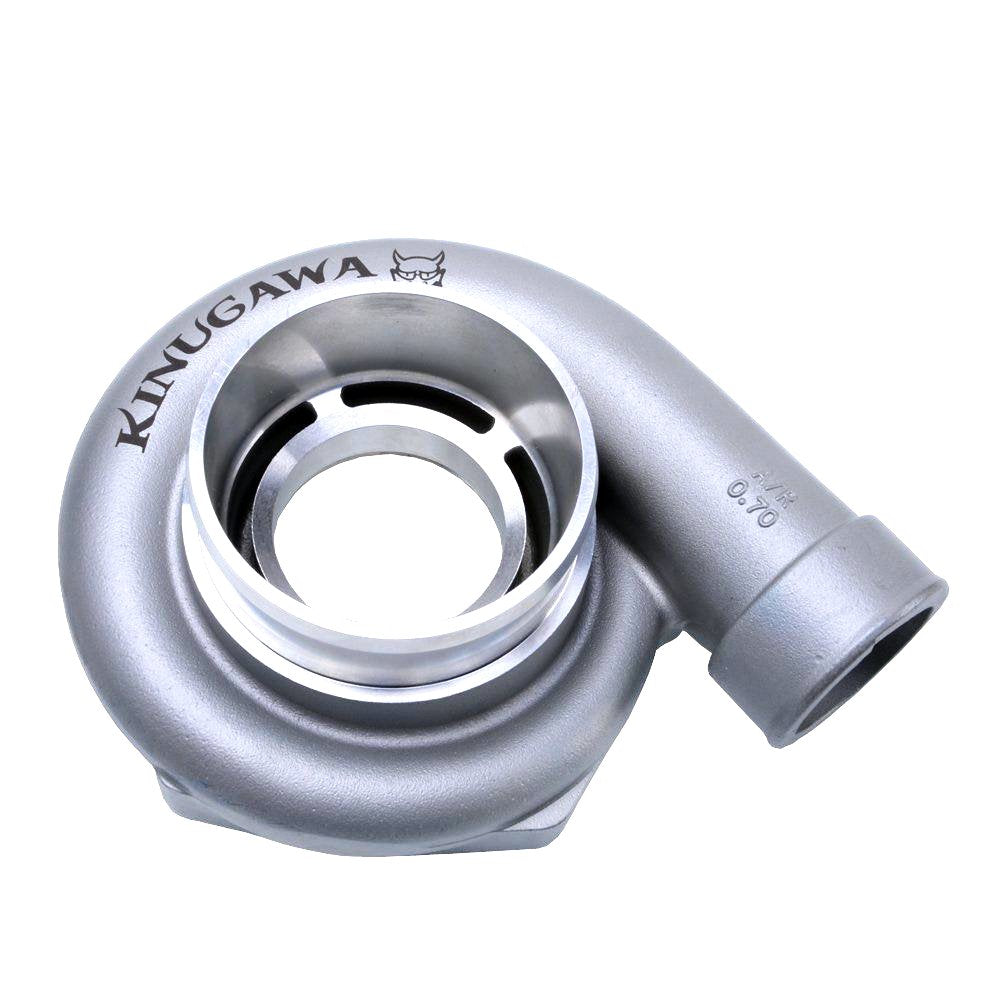

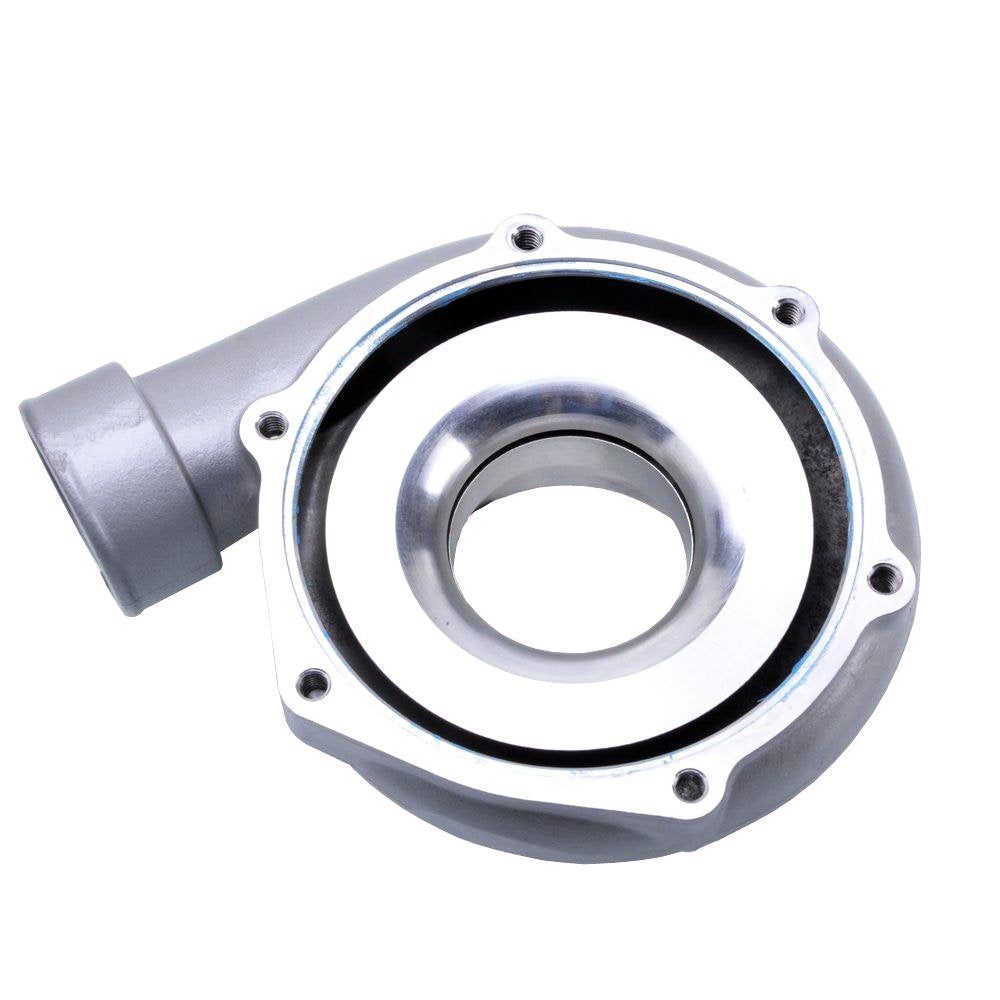

- Kinugawa Compressor Housing - GT3582R
|
| Application |
- Kinugawa / Garrett GT3582R Ball Bearing Turbo (It CAN NOT Fit GTX3582R)
- GT3582R 706451-5, 714568-1, 714568-2, 714568-3, 714568-7, 714568-8, 714568-9, 714568-10, 714568-11, 714568-12
- Fit 61.4/82.0 mm/Trim 56 Compressor wheel
- Available with or without seal plate and hardware kit
|
| Compressor Wheel Fit |
- Compressor Wheel (Inducer/Exducer) : 61.4/82.0 mm (Trim 56)
|
| Compressor Housing |
- Compressor Inlet : 101.3 mm / 4”
- Compressor Outlet : 51mm / 2.5”
- Compressor A/R : .70
|
| Kit Includes |
- 1 x Compressor Housing
- 1 x Seal Plate kit if selected:
- 1 x seal plate
- 1 x o-ring
- 2 x lock plate
- 6 x bolt
|
| Made By |
|
| Warranty |
|
Please note, due to the number of turbo configurations, and a large variety of fitting kits, Kinugawa orders are custom made to order (please allow 7-10 working days)
