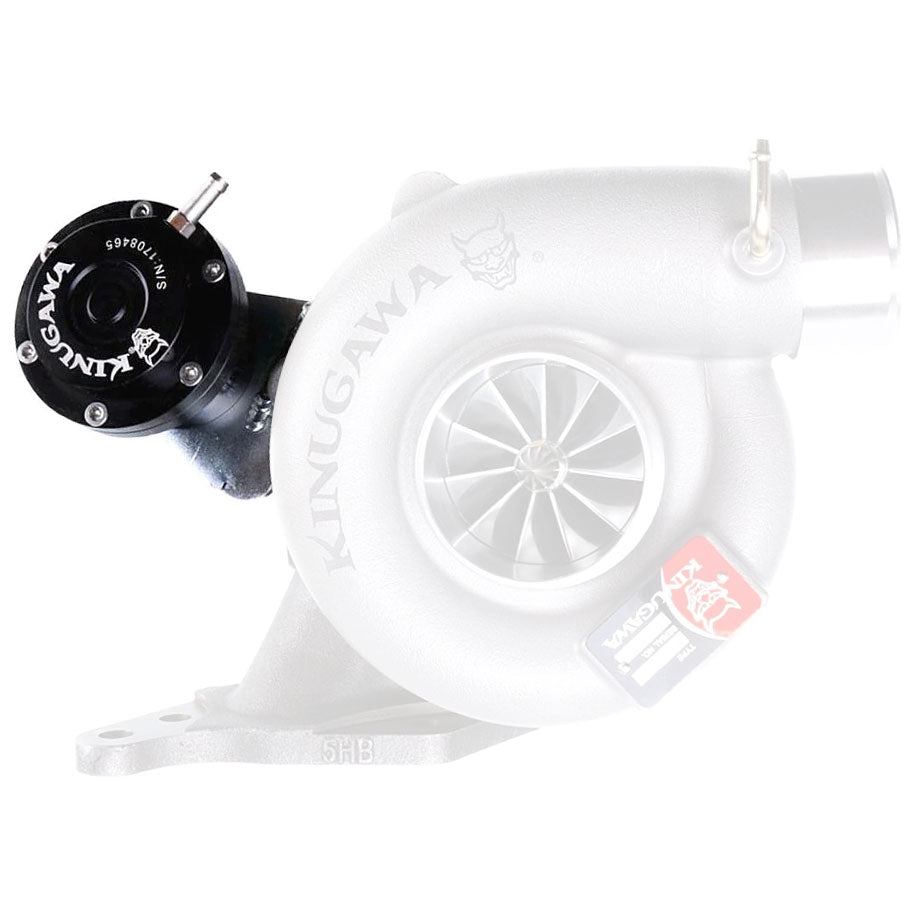

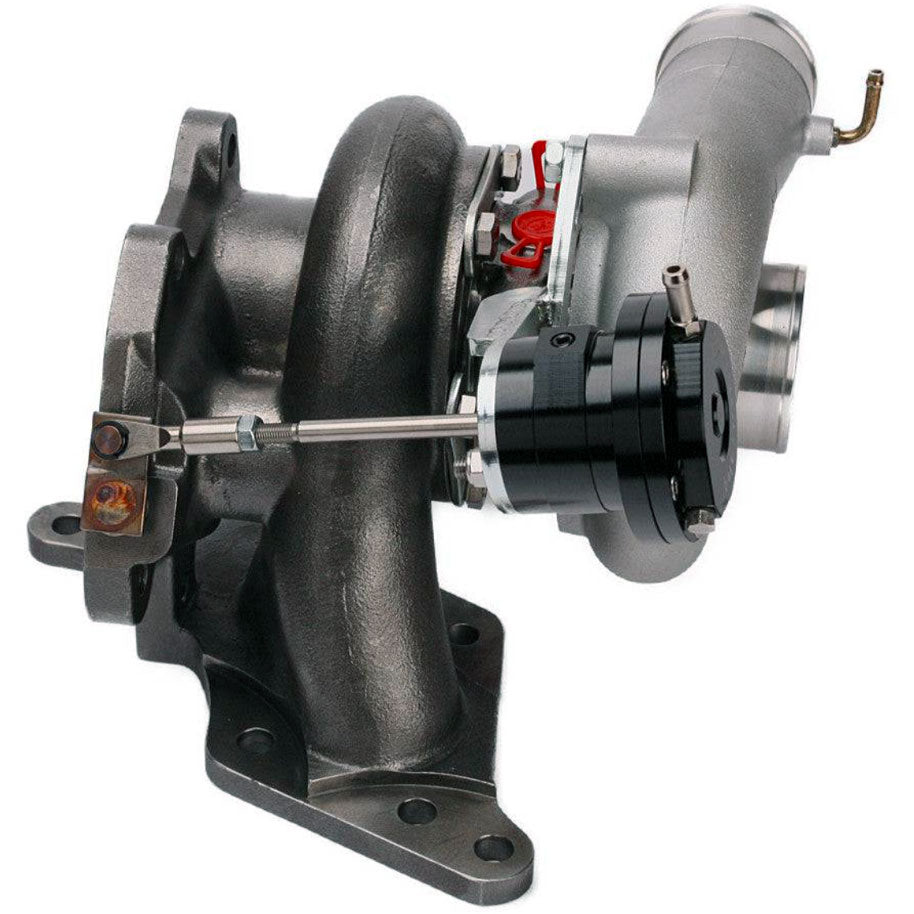

Billet Internal Wastegate Actuator for Subaru JDM STI 99-21 Twin Scroll

SINGLE PORT ACTUATORS

Function: Boost reference signal is supplied to one side of the diaphragm and moves the piston in one direction to open the wastegate. Only mechanical spring pressure is used for the return stroke / holding wastegate closed.

Application: Ideal for basic boost control including via manual boost controller (MBC) or electronic boost controller (EBC)

Advantages - simple plumbing & basic functionality

Disadvantages - Heavily reliant on spring pressure to control boost. Typically requires a significantly heavier spring than a dual port for the same boost pressures, narrower range of boost control and less precise.

DUAL PORT ACTUATORS

Function: Boost reference signal is supplied to both sides of the diaphragm for more precise control of the wastegate in two directions - opening and closing. Spring pressure is pneumatically assisted for the return stroke / holding wastegate closed

Application: Particularly well suited to applications with higher boost levels, high exhaust backpressures or oversized wastegates. Typically used in conjunction with an EBC for the ultimate in boost control.

Advantages - Controls the diaphragm bidirectionally, allowing more precise boost control and superior response. Typically a softer spring than a single port actuator is required for any given target boost pressure, providing a greater range of boost adjustment pressures for any given spring installed

Disadvantages - (To take advantage of the secondary port) Added complexity, more plumbing and must be used with an EBC

Tech tip: Dual port actuators give you more flexibility and tunability but can also be run as a traditional single port actuator - just leave the lower actuator port vented to atmosphere.



A wastegate is basically a device that bypasses some exhaust flow around the turbine section of a turbocharger to control maximum boost. A wastegate is usually controlled by a pressure actuator that is connected to manifold pressure. The wastegate is normally closed, held shut by a spring inside the actuator canister. When preset pressure limits are exceeded, the actuator progressively opens the wastegate, allowing exhaust flow to bypass the turbine, thus regulating manifold boost pressure. On the surface, it sounds like a simple premise, and in fact, a wastegate is a simple device. The problem comes from the pressure in the exhaust system, called turbine inlet pressure that can bear against the valve, overpowering the spring in the actuator, and forcing the wastegate open at lower than intended boost levels.

The normal type turbocharger wastegate actuators are selected or engineered for a specified boost level and turbine inlet pressure. Such actuators are usually just big enough to do the job at the target boost levels under the 2 bar. If the turbocharger boost is increased for additional airflow and performance, the normal type wastegate actuator is frequently incapable of holding the wastegate fully closed until the higher boost level is reached. This happens because turbine inlet pressure also increases as boost pressure rises. The fix is to use a bigger spring in the wastegate actuator to hold it closed until the desired peak boost is achieved, however, that also requires a bigger actuator diaphragm to override the heavier spring when the desired boost level is reached.

That’s why KINUGAWA created the Big Head actuator that’s used on many of its diesel or high boost level gasoline systems. Available in single or dual port, the Big Head actuator features a wider diaphragm with larger surface area for greater mechanical advantage over the wastegate resulting in increased boost response and more precise control even in extreme applications. The net affect is that the turbocharger comes up to peak boost more quickly and then maintains that boost level throughout the engine’s RPM range for optimum mid-range torque and top end performance.



• Quick and Controlled Boost
• Produces massive torque right from idle
• Increases diaphragm area & spring pressure
• Keeps valve seated longer achieving higher peak boost, sooner
• Crisp acceleration and more mid-range pulling power

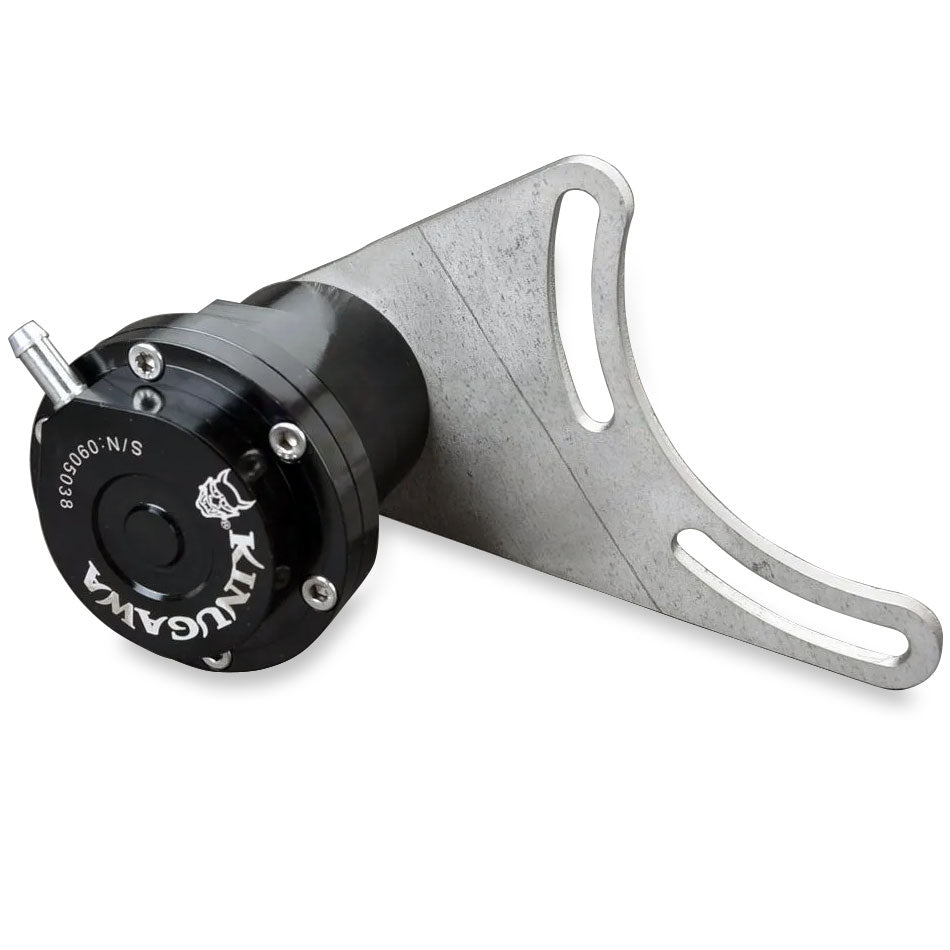

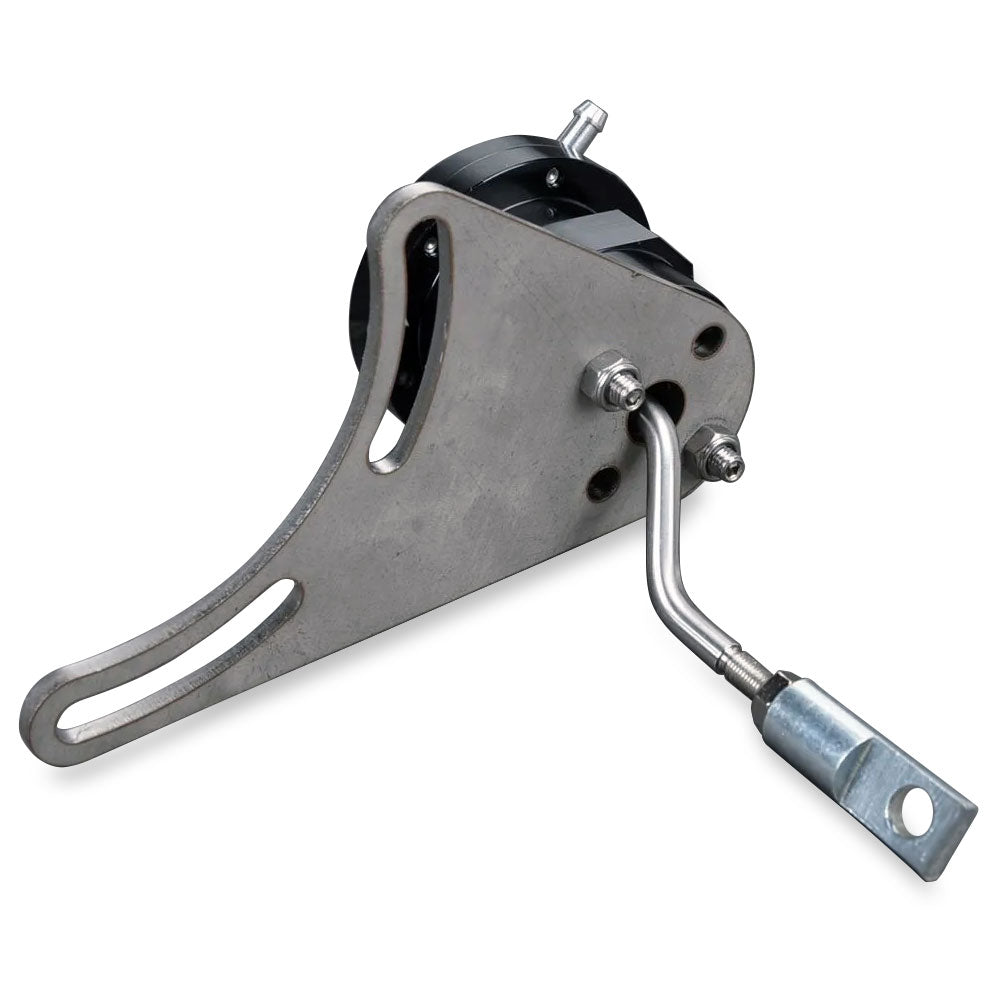

• 1 x Adjustable Actuator (pre-assembled to selected spring pressure)
• 1 x Turbo-Specific Bracket
• Additional Springs (when selected)
• All necessary nuts/bolts

The internal wastegate actuator is designed to have 2mm of preload applied to the rod during installation. Please ensure that this is set accordingly. For a clevis type application, when installing the onto the wastegate valve arm, make sure that there is 2mm of preload. Then use compressed air - the amount of air pressure applied should be slightly higher than what the Big Head actuator spring is rated to. (do not apply air
pressure supply higher than 3 bar (40psi) gauge).

This is required to pressurize the Big Head actuator so that the clevis can be hooked onto the wastegate valve arm easily.

Remember to reinstall the standard R-Clip or circlip to secure the clevis to the wastegate valve arm. Then tighten the rod nut to secure the clevis onto the rod.
