Kinugawa

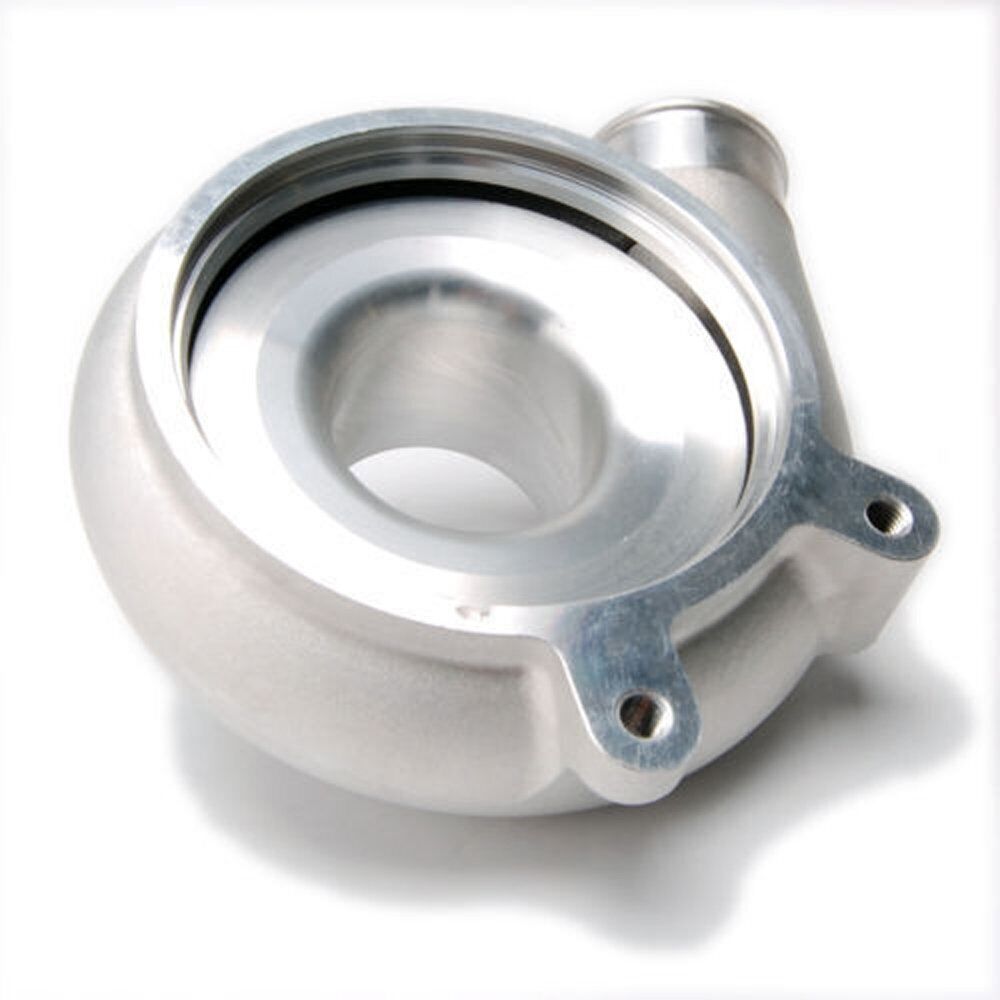

Compressor Housing for TD05H 2.25" inlet - Subaru WRX 99-07/Forester 97-08

Compressor Housing for TD05H 2.25" inlet - Subaru WRX 99-07/Forester 97-08

$255.00 AUD
$255.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

Description

Production Information
Item Name
  • Kinugawa Compressor Housing - TD05H
Application
  • Upgrade your Mitsubishi/Greddy/Trust smaller TD05H Turbo to a larger size
  • Upgrade SUBARU WRX/STI/FXT stock TD05H smaller to a larger size or convert 90 degree inlet to straight.
  • Needs super back rebuild kit if stock turbo compressor wheel is flat back wheel such as 14C, 17C, 19C, 14B
Compressor Wheel Fit
  • Compressor Wheel 16G (Inducer/Exducer) : 48.3/68.0 mm
  • Compressor Wheel 18G (Inducer/Exducer) : 50.3/68.0 mm
  • Compressor Wheel 20G (Inducer/Exducer) : 52.3/68.0 mm
Compressor Housing
  • Inlet diameter : 2.25" (57 mm)
  • Outlet diameter : 1.88" (47.6mm)
  • 0.55 A/R
Kit Includes
  • 1 x Compressor Housing
  • Everything in photo included
Made By
  • Kinugawa turbo
Warranty
  • One Year

Please note, due to the number of turbo configurations, and a large variety of fitting kits, Kinugawa orders are custom made to order (please allow 7-10 working days)
